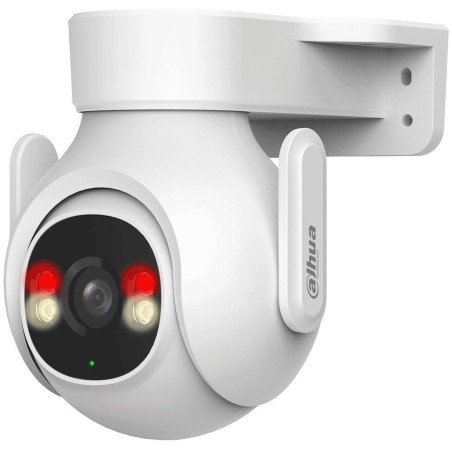

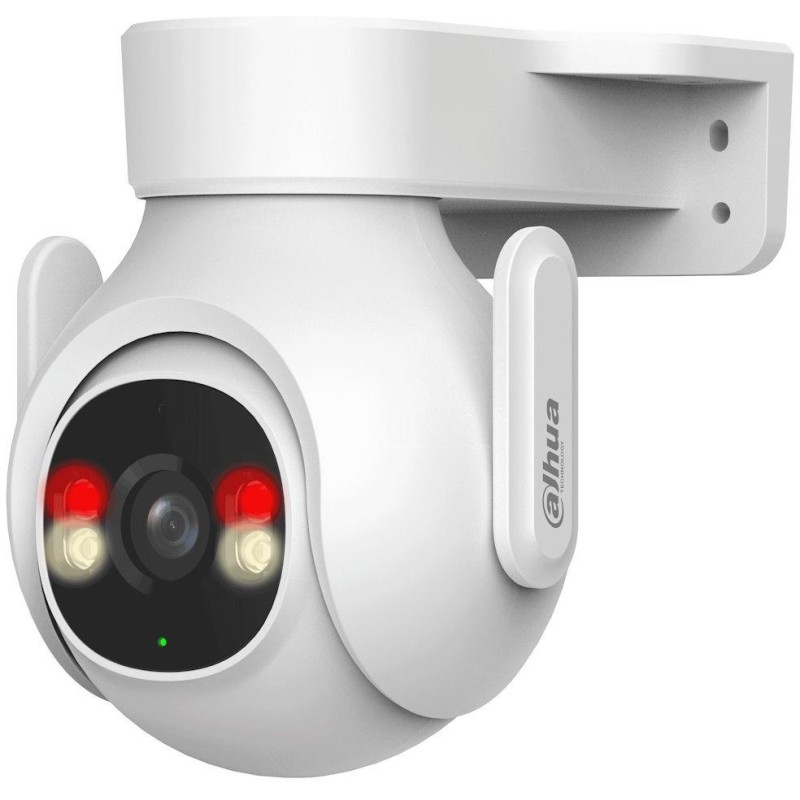

Dahua IPC-P5BP-PV-0360B
Outdoor rotatable 5-megapixel IP network camera with Wi-Fi , 2880 × 1620 px resolution, 1/3" CMOS sensor, H.265 video compression, microphone and speaker.
IR and LED illumination up to 30 ms with Full-color technology, lens f = 3.6 mm, viewing angle 78° horizontally , ICR, DWDR , 1× LAN 10/100 Mbps, dual streaming, microSD card slot (max. 256 GB), waterproof IP66 , DC 12 V power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
Most Dahua IP cameras are supported in Synology ( list here ) and Qnap ( list here ) NAS devices.
BASIC SPECIFICATIONS:
Features:
- Sensor resolution 5 Mpx
- H.265 video compression
- Mobile application in Czech
- Slot for installing a microSD card up to 256 GB capacity
- Two-way audio
- Active deterrence in the form of a siren and light alarm
- AI human figure and vehicle detection
- Abnormal sound detection
- Auto tracking
- IR and white LED illumination with a range of up to 30 meters
- Wi-Fi 6 wireless connection (802.11b/g/n/ax)
- Bluetooth pairing
- Image rotation 0°/180°
- 0° to 355° rotation, 0° to 90° tilt
Display:
Sensor resolution: 5 Mpx
Sensor chip: 1/3" CMOS
Maximum resolution: 2880 × 1620 px
Supported resolutions: 5 Mpx (2880 × 1620), nHD (640 × 360)
Frame rate: 25/30 fps
IR illumination: yes, up to 30 m
LED light: yes, up to 30 m
Lens: f = 3.6 mm, fixed, angle of view 78° horizontally, 40° vertically, 93° diagonally
Shutter speed: 1/3–1/100,000 s
ICR filter: yes
Image dynamics: DWDR
PTZ:
- Rotation 0° to 355°
- Tilt 0° to 90°
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45
Wi-Fi: Yes, IEEE 802.11b/g/n/ax (2.4GHz)
Video compression: H.265
ONVIF support: no
Streaming: Dual stream
Memory card slot: microSD (max. 256 GB) />
I/O interface: no
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 12 V, power adapter included
Protection: waterproof, protection level IP66
Working temperature: -20 to +50 °C, humidity up to 95%
Dimensions: 139 × 138 × 116 mm
Weight: 425g
