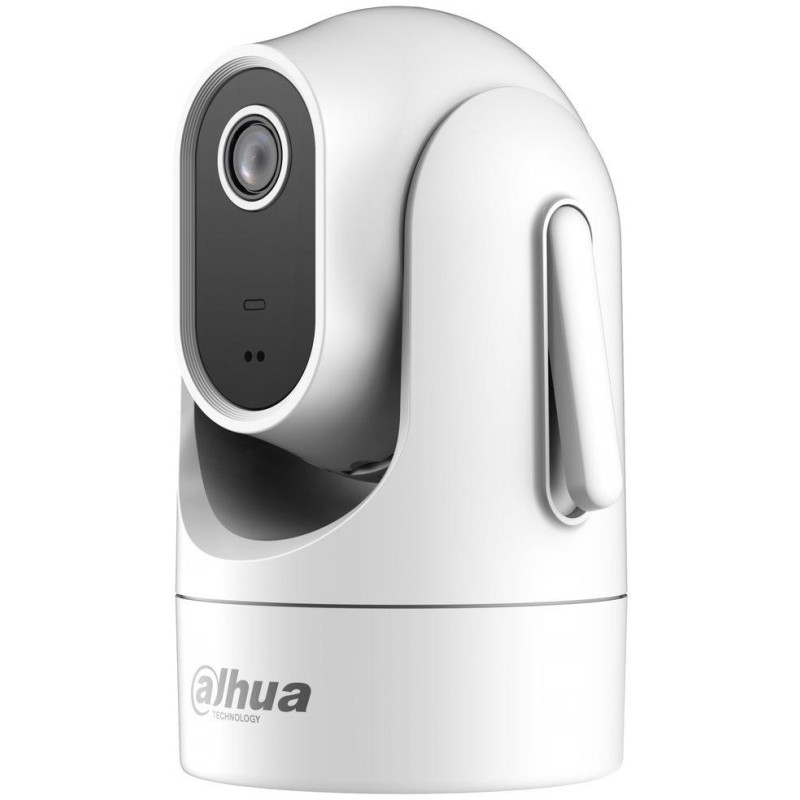

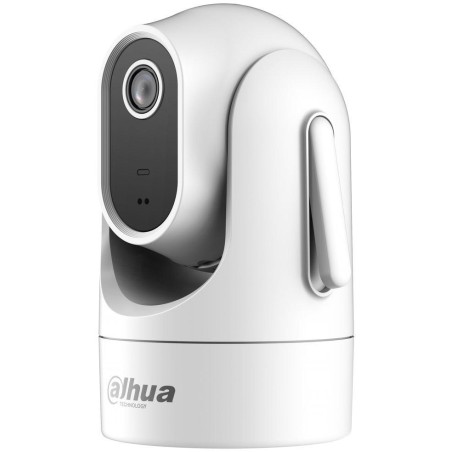

Dahua SD-H4C-0400B
Indoor 4-megapixel IP network camera Cube type with Wi-Fi , 2560 × 1440 px resolution, 1/2.8" CMOS sensor, H.265+ video compression, microphone and speaker.
IR illumination up to 15 m, lens f = 4 mm, field of view 80.3° horizontally , ICR, DWDR , 1× LAN 10/100 Mbps, microSD card slot (max 512 GB), DC 5 V power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
Most Dahua IP cameras are supported in Synology ( list here ) and Qnap ( list here ) NAS devices.
BASIC SPECIFICATIONS:
Features:
- Sensor resolution 4 Mpx
- H.265+ video compression
- Slot for installing microSD card up to 512 GB capacity
- Support Auto tracking, motion detection, human figure detection
- Easy access via the DMSS mobile app
- IR illumination with a range of up to 15 meters
- Two-way audio
- Privacy mode
- Audible alarm
- Wireless Wi-Fi connection
- Image rotation 0°/180°
- Rotation 0° to 325°, tilt -20° to 100°
Display:
Sensor resolution: 4 Mpx
Sensor chip: 1/2.8" CMOS
Maximum resolution: 2560 × 1440 px
Supported resolutions: 4 Mpx (2560 × 1440), 1080p (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), D1 (704 × 576, 704 × 480), CIF (352 × 288, 352 × 240)
Frame rate: 25/30 fps
IR illumination: yes, up to 15 m
Lens: f = 4 mm, fixed, angle of view 80.3° horizontally, 43.2° vertically, 94.3° diagonally
Shutter speed: 1/3–1/100,000 s
ICR filter: yes
Image dynamics: DWDR
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45, USB-C (power)
Wi-Fi: Yes, IEEE 802.1b/g/n (2.4 GHz)
Video compression: H.264B, H.265+, H.264, H.265, H.264+, MJPEG
ONVIF support: yes, S/T profile, RTMP, CGI, SDK
Memory card slot: microSD (max. 512 GB)
I/O interface: no
Audio: yes, two-way communication(microphone + speaker)
Mechanical properties and environment:
Power supply: DC 5 V/ 1 A, power consumption max. 5 W, power adapter included
Working temperature: -10 to +40 °C, humidity up to 95%
Dimensions: 130.4 × 95.5 × 95.5 mm
Weight: 0.25g
