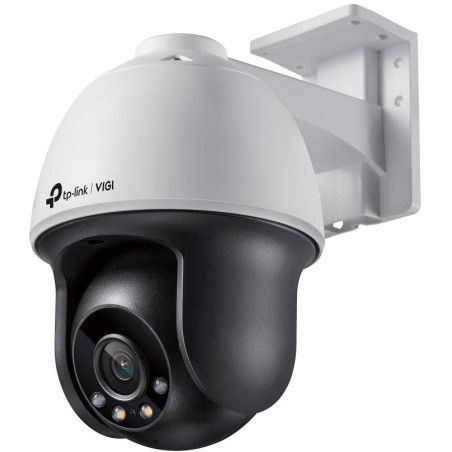

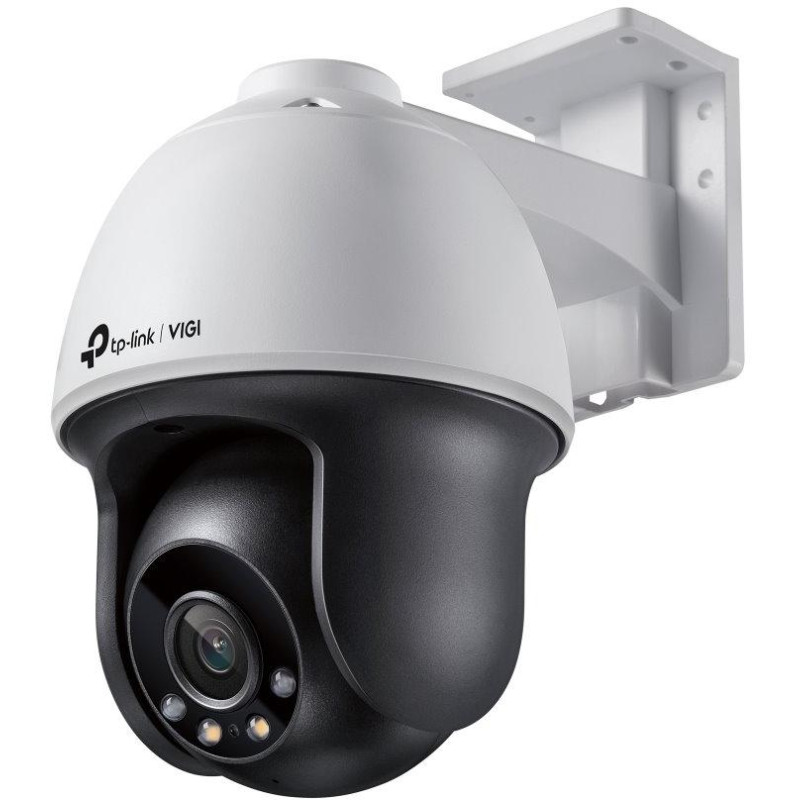

TP-Link VIGI C540 4 mm
The 4-megapixel rotating IP camera offers a 1/3" CMOS sensor with a resolution of 2560 × 1440 pixels and DWDR support. Connection can be easily made using the RJ-45 port . Thanks to the TP-Link VIGI application, you can monitor events 24 hours a day, 7 days a week from anywhere via your smartphone. The reliable night vision system ensures that the camera works well even in poor lighting conditions and records events for future inspection. Two power supply methods not only provide you with greater convenience, but also make connection extremely easy.
- High resolution 4 Mpx: More than enough pixels for the camera to capture some of the more discreet details.
- Continuous color capture: With a highly sensitive sensor and white LED illumination, you can count on capturing color details 24 hours a day, even in complete darkness.
- Powerful Pan and Tilt Function: Smarter options to monitor key areas and enhance the security of your property offer customizable guard routes and automatic tracking.
- IP66 protection: Reliable IP66 protection ensures stable operation even in harsh outdoor conditions.
- Intelligent Detection: Actively detects unusual events such as zone intrusion and boundary crossing, and immediately sends you a notification.
- Active Defense: Warn and deter potential intruders with sound and light alarms when abnormal situations are detected.
- H.265+: Cameras transmit compressed, crystal-clear images without using additional bandwidth, saving disk space, reducing network load, and monitoring costs—all without compromising image quality.
- PoE+/12V DC: Two types of power supplies not only provide you with greater convenience, but also make wiring remarkably easy.
- Remote Management: Manage your security right from the palm of your hand with the VIGI app.
BASIC SPECIFICATIONS
Display :
Sensor resolution: 4.0 Mpx
Sensor chip: 1/3" CMOS, progressive scan
Maximum resolution: 2560 × 1440 px
Frame rate: 25/30 fps
IR illumination: yes, up to 30 m
LED light: yes, up to 30 m
Field of view: 79° horizontal, 43° vertical, 93° diagonal
Interfaces and protocols:
Interface: 1× RJ-45
Video compression: H.265+, H.265, H.264+, H.264
Memory card slot: yes, microSD (max. 256 GB)
Audio: built-in microphone + speaker
Mechanical properties and environment:
Power supply: DC 12 V (power supply not included) or PoE 802.3af/at, power consumption max. 14 W
Working temperature: -30 to +60 °C
Dimensions: 198 × 172 × 120 mm
