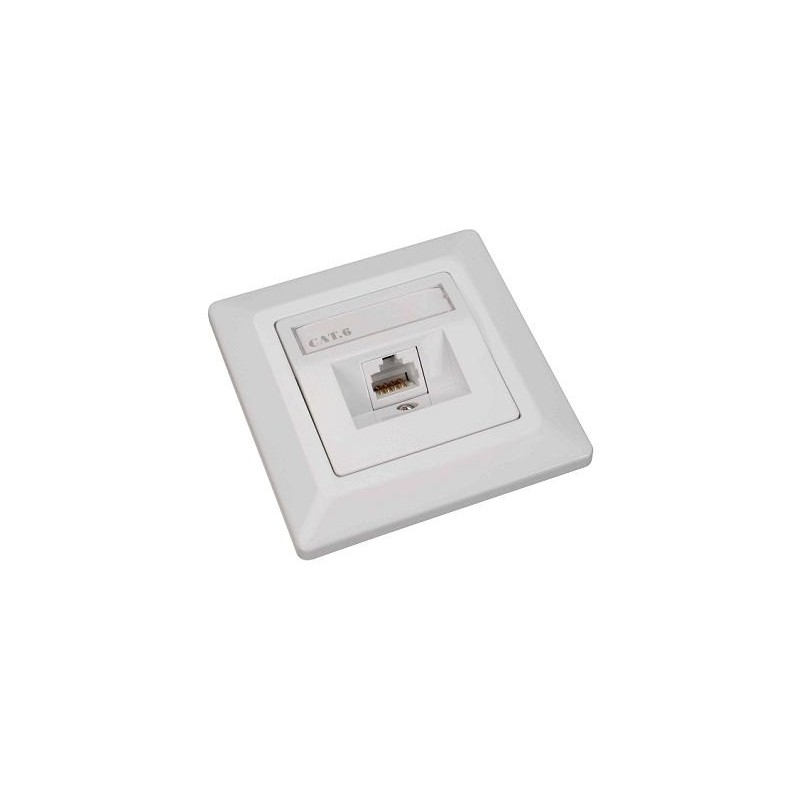

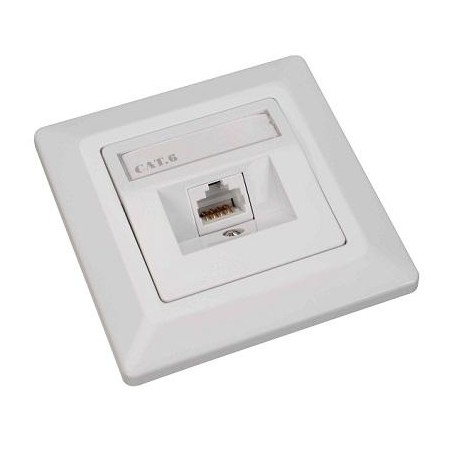

Solarix Eth. Socket CAT6 STP 1 x RJ45 flush-mounted white SX9-1-6-STP-WH

Solarix SX9-1-6-STP-WH

The SX9 sockets from the Solarix product group - category 6 easily meet all the requirements defined in the standards for structured cabling ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173, including all the latest amendments for this category. The sockets are of the German style type and are equipped with one or two RJ-45 ports with a 45° angle . The Krone type IDC terminal block can be cut with wires of AWG 26–22. The contacts are marked on the terminal block with a color scheme according to the type of connection, either according to the T568A or T568B standard. The SX9 sockets are designed to provide maximum performance, long life, reliability and at the same time enable easy installation. The sockets are available in both unshielded and shielded versions and are intended for installation under the surface or in window sill trays. When using the SX9-0-WH box, this type of socket can be used for surface installation. The color of the drawer and box is white.

BASIC SPECIFICATIONS

Connector type: RJ-45

Number of connectors: 1

Category: 6

Design: flush-mounted

Dimensions: 80 × 80 mm

Color: white
