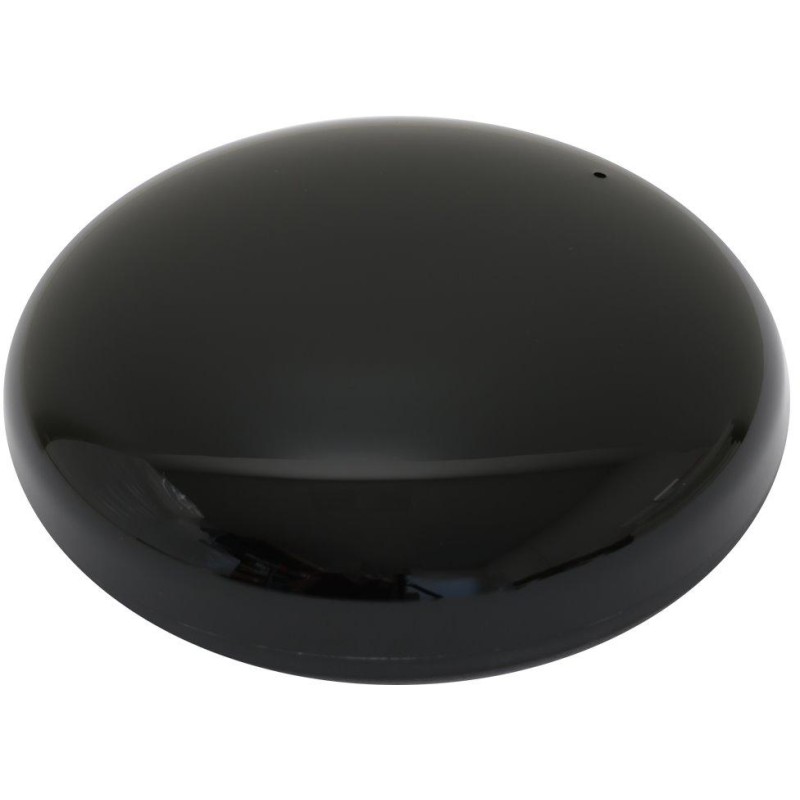

XtendLan XL-SENSOR1
A smart universal Wi-Fi IR controller used to control devices that you otherwise control with a handheld infrared remote control. Typically, these are devices such as televisions, TV boxes, players, air conditioners, fans and others. Simply place the controller anywhere within radio range of your Wi-Fi access point and within sight of the controlled device.
The controller works with the Tuya Smart app and supports third-party apps such as Alexa voice assistant, Google Home Assistant, XIAODU, Tencent Xiaowei, Ding Dong, Tmal Genie, and Yandex.
Initial commissioning of the controller is very simple, just connect it to an electrical outlet via an adapter (not included) or use a power supply with 5 V and 1 A, place it within range of the Wi-Fi network and then pair it with the Tuya Smart application. Commissioning takes place via your mobile phone or tablet on the local network and you can then control the controller from anywhere.
The controller supports a large group of infrared remote controls. After commissioning, simply select the appropriate remote control or let the device identify it. You can have several controllers added to this device, i.e. from one device you can control several devices for which you otherwise need to look for the right IR remote control.
For configuration and control, you need a mobile phone or tablet with Android or iOS operating system.
Key feature:
- Replaces remote controls for TVs, players, air conditioners, fans, etc.
- Wi-Fi 2.4 GHz (IEEE 802.11b/g/n)
- Infrared remote control of anything (carrier frequency 38 kHz)
- Multiple devices controllable at once
BASIC SPECIFICATIONS
Supported systems: Android or iOS
Compatibility: the most widespread group of remote controls with NEC protocol and 38 kHz carrier frequency
Communication: Wi-Fi 2.4 GHz (802.11b/g/n) for internet connection and pairing
Wireless range: approx. 30 m
Infrared range: approx. 12 m
Power supply: DC 5 V (max. 1 A) via microUSB (power supply not included)
Dimensions: 65 × 65 × 18 mm
Weight: 27g
