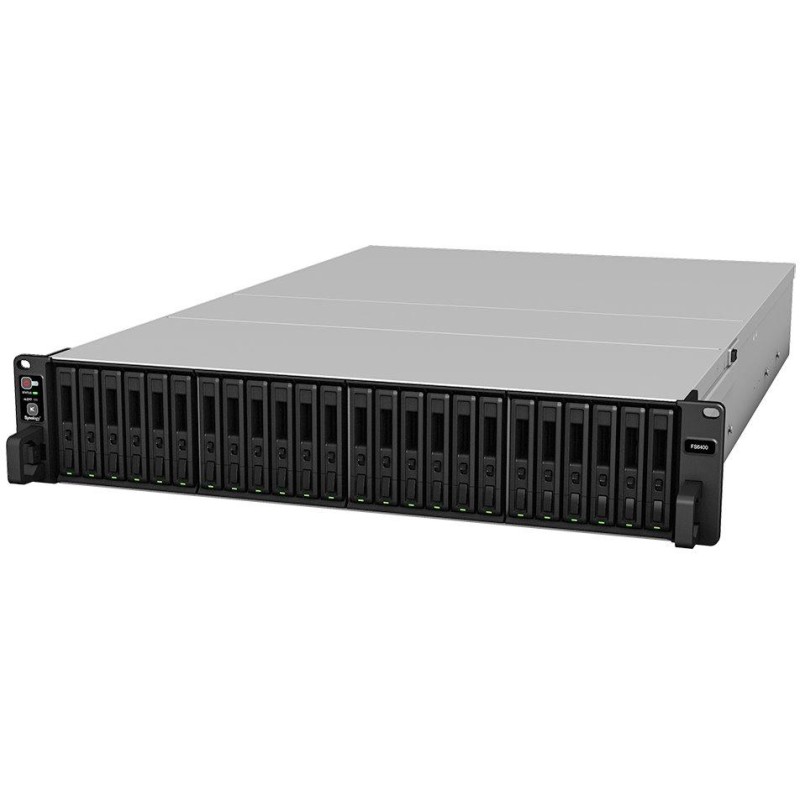

Synology FS6400 Flash Station
The FlashStation FS6400 is a highly reliable, ultra-high-performance all-flash server designed for I/O-intensive, latency-sensitive applications such as multimedia post-processing, virtual machines, online transaction processing, or databases.
Uncompromising performance
With dual Intel Xeon Silver processors with Non-Uniform Memory Access (NUMA) I/O optimization, 24 drive bays supporting 2.5" SAS/SATA SSDs, and 32GB DDR4 ECC RDIMM memory, the FS6400 delivers over 240,000 iSCSI 4K random write IOPS and is ideal for multimedia post-processing, virtual machines, online transaction processing, or database applications.
FS6400 comes with two 10G Base-T ports and supports optional network cards for high-speed data transfer. Storage capacity can be expanded with the Synology RX1217sas/RX2417sas expansion unit, providing up to 72 storage units with elastic scalability.
- Synology all-flash server aimed at high-I/O and latency-sensitive applications
- Over 240,000 random iSCSI 4K IOPS, ultra-high performance with low latency
- Dual 8-core Intel Xeon Silver processors with 32GB DDR4 ECC RDIMM memory, expandable up to 512GB
- Built-in 10G Base-T ports allow installation of optional 10/25/40 GbE network cards
- Complete virtualization solution for VMware vSphere, Windows Server Hyper-V, Citrix XenServer and OpenStack Cinder systems
- Extended Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per share
- Expandable up to 72 drives with 2 Synology RX2417sas expansion units
BASIC SPECIFICATIONS
Processor: 2x Intel Xeon Silver 4110
System memory: 32GB (2x 16GB) DDR4 ECC RDIMM
Number of drive bays: 24x SAS/SATA HDD/SSD (2.5")
LAN interface: 2x RJ-45 10 GbE, 2x RJ-45 GbE
Ports: 2x PCIe 3.0 x8, 1x serial port (COM), 2x USB 3.0, 1x expansion port
Weight: 17.26 kg
