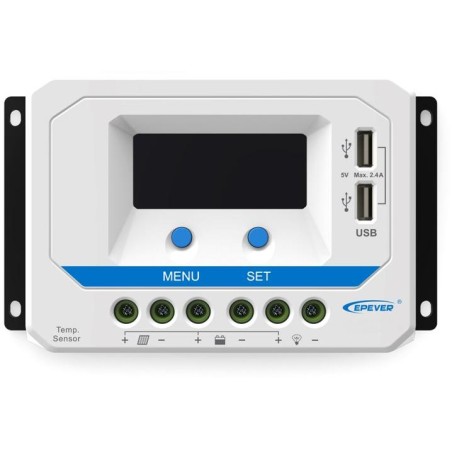

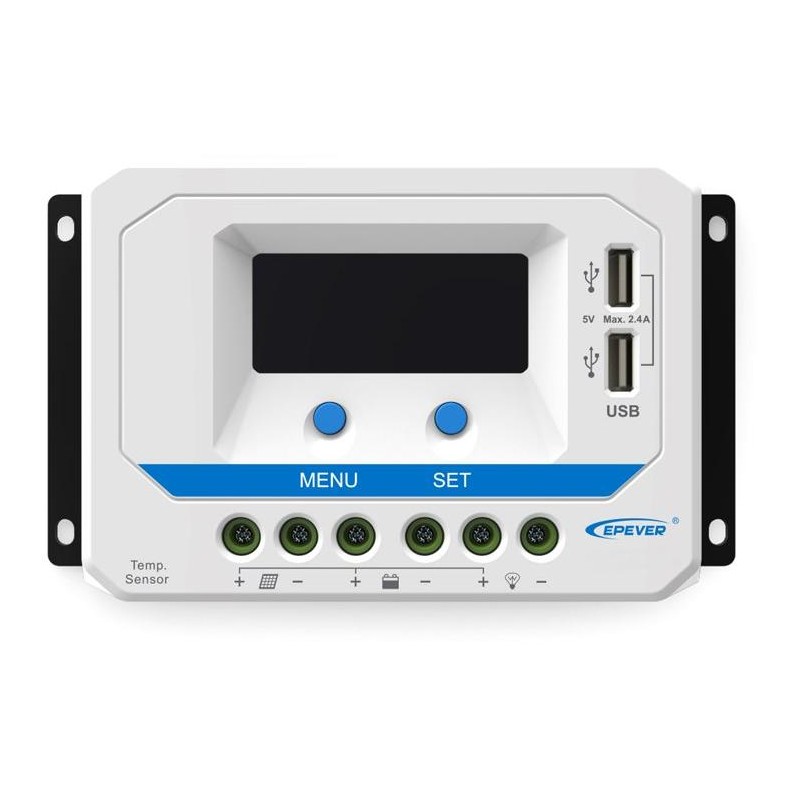

EPEVER VS3024AU solar PWM controller 12/24 V, 30 A, USB, input 50V

EPEVER VS3024AU

PWM solar controller. Its design is intended for small island solar systems with 12 V solar panels (max. 400 Wp) for charging a 12 V battery, or 24 V solar panels (max. 800 Wp) for charging a 24 V battery and a maximum charging current of up to 30 A. The advantage is very simple and easy installation and reliable operation.

The built-in LCD display provides you with information about the voltage and current of the solar panel, the battery voltage and charging current, as well as the current drawn by DC appliances. It also offers statistical information about the total amount of energy produced and consumed. Using the buttons below the display, you can set one of three types of lead-acid batteries (sealed, gel or open liquid).

Furthermore, this model now offers two USB outputs for charging, for example, a mobile phone or other portable electronic devices. The maximum USB output current is 2.4 A.

Note: The external MT50 display or PC interface cannot be connected to the controller. An external battery temperature sensor can be connected.

Features:

•

• Automatic detection of 12 V or 24 V

• Surge protection

• Short circuit protection

• Reverse polarity protection for solar panels and batteries

• At low voltage, it disconnects the load output

• Optional external temperature sensor

• Operating temperature: -25°C to +55°C

• Maximum size of connecting cables: 16 mm ²

• Designed for indoor installation, wall mounting

• Easy installation

• Protection: IP30


BASIC SPECIFICATIONS
