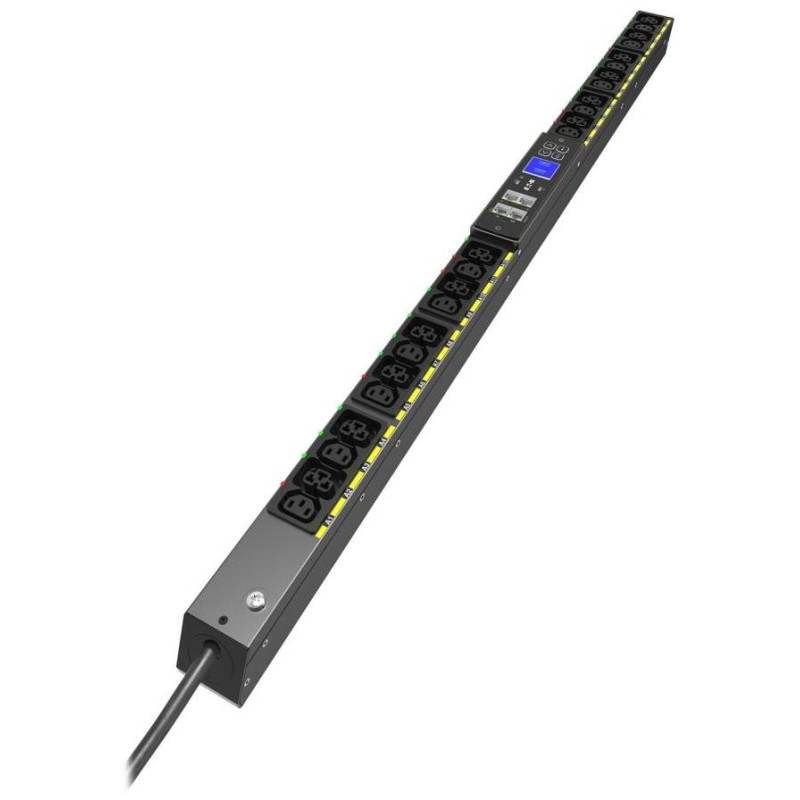

EATON ePDU G4: Switched IEC 0U, In: C20 16A 1P - Out: 12xC13:12xC39

Eaton ePDU G4 EVSWFC20A

Eaton ePDUs are in-rack power distribution units designed specifically for data center environments. The G4 switched ePDUs allow you to control devices without having to be physically present at them. Control and switching is possible even for devices powered by multiple ePDUs. High-retention receptacles provide a secure hold for standard power cords and support P-Lock power cords. The universal C39 receptacle supports a C14 or C20 power cord plug.

•

• UL 2900-1 and IEC 62443-4-2 cybersecurity standards

• Hot-Swap Network Control Module

• Network cascading, connecting up to 32 PDUs via a network loop

• Power sharing between two network PDUs ensures constant access to PDU data and sensors

• 1% measurement accuracy in IEC class 1

• Gigabit network card with 2× Gb ports

• Support for RestAPI, Modbus TCP, SNMP, LDAP, HTTPS protocols

• Output control for on/off, restart and sequential start


BASIC SPECIFICATIONS

Height: 0U (vertical mounting)

Max. power: 3.7 kW

Voltage: 200-240V

Current: 16 A

Phase: single-phase

Switching on inputs A and B: yes

Input: 1× IEC-320-C20 1P

Output sockets: 12× IEC-320-C13, 12× IEC-320-C39

Circuit breakers: no

Socket control: no
