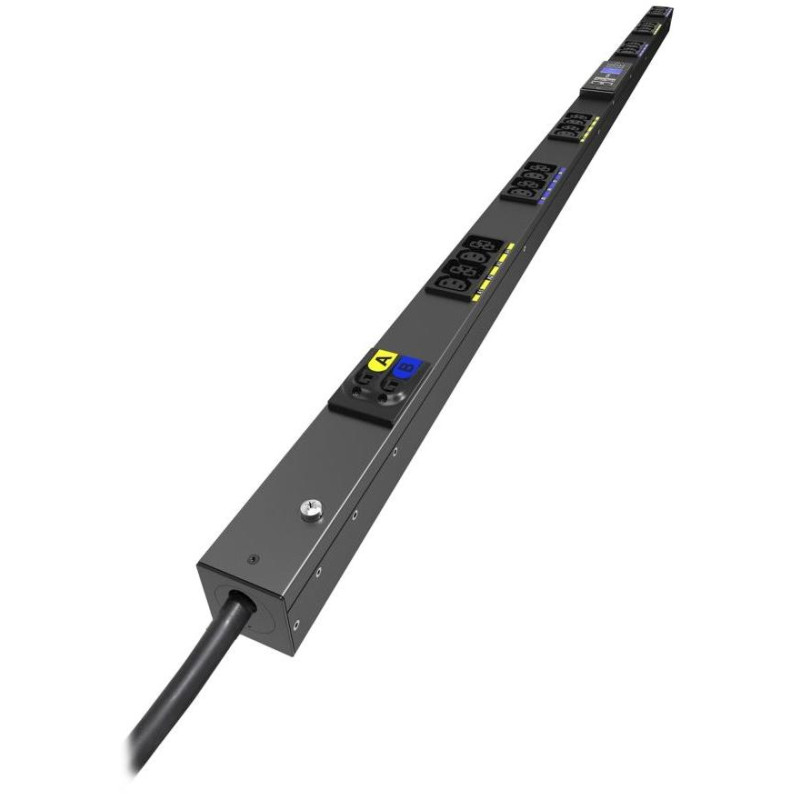

EATON ePDU G4: Metered input IEC 0U, In: IEC60309 32A 1P - Out: 12xC13:12xC39

Eaton ePDU G4 EVMIF132A

Eaton ePDUs are in-rack power distribution units designed specifically for data center environments. They provide reliable, uninterrupted power distribution and allow you to measure, monitor, and control your power consumption down to the individual server level. High-retention receptacles provide a secure hold for standard power cords and support P-Lock power cords. The universal C39 receptacle accepts either a C14 or C20 power cord plug.

•

• UL 2900-1 and IEC 62443-4-2 cybersecurity standards

• Hot-Swap Network Control Module

• Network cascading, connecting up to 32 PDUs via a network loop

• Power sharing between two network PDUs ensures constant access to PDU data and sensors

• 1% measurement accuracy in IEC class 1

• Gigabit network card with 2× Gb ports

• Support for RestAPI, Modbus TCP, SNMP, LDAP, HTTPS protocols


BASIC SPECIFICATIONS

Height: 0U (vertical mounting)

Max. power: 7.4 kW

Voltage: 200-240V

Current: 32 A

Phase: single phase

Current consumption monitoring: yes

Input: 1× IEC 60309 1P

Output sockets: 12× IEC-320-C13, 12× IEC-320-C39

Circuit breakers: 2 single-pole

Socket control: no
