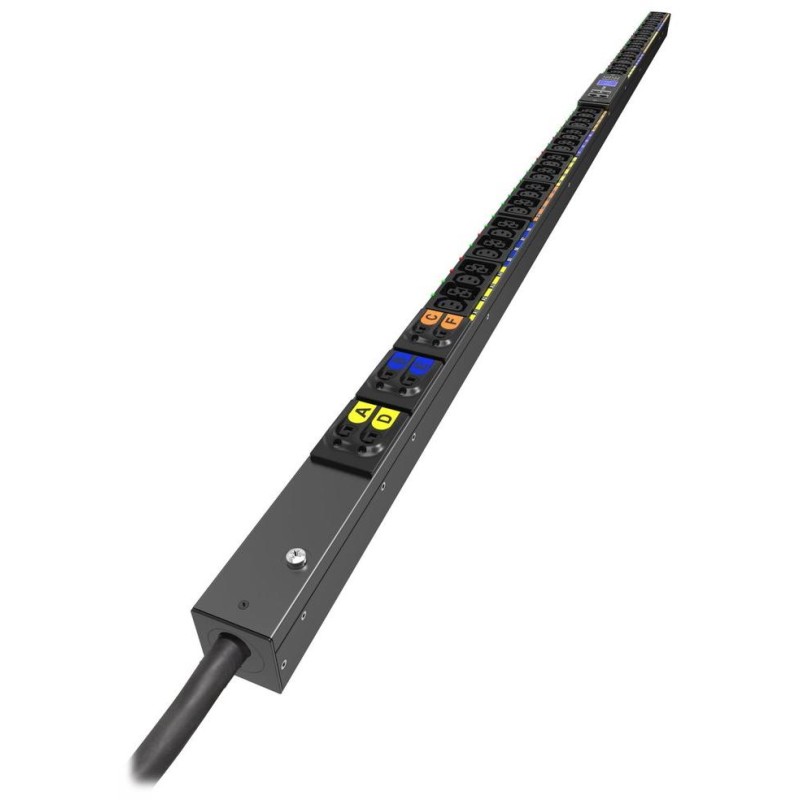

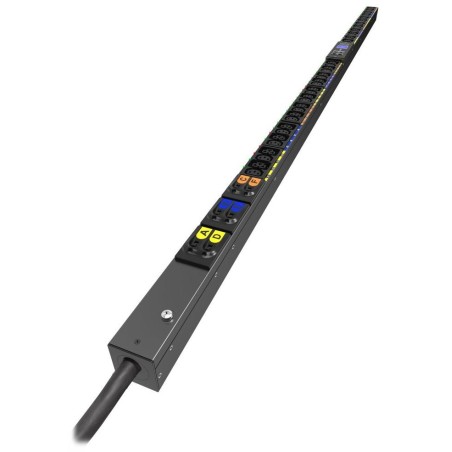

EATON ePDU G4: Managed IEC 0U, In: IEC60309 32A 3P - Out: 24xC13:24xC39

Eaton ePDU G4 EVMAF332C

Eaton ePDUs are in-rack power distribution units designed specifically for data center environments. The G4 managed ePDUs provide complete control and metering of devices, including devices powered by multiple ePDUs. High-retention receptacles provide secure retention of standard power cords and support P-Lock power cords. The universal C39 receptacle supports either a C14 or C20 power cord plug.

•

• UL 2900-1 and IEC 62443-4-2 cybersecurity standards

• Hot-Swap Network Control Module

• Network cascading, connecting up to 32 PDUs via a network loop

• Power sharing between two network PDUs ensures constant access to PDU data and sensors

• 1% measurement accuracy in IEC class 1

• Gigabit network card with 2× Gb ports

• Support for RestAPI, Modbus TCP, SNMP, LDAP, HTTPS protocols

• 1% measurement accuracy at output level (V, W, A)

• Output control for on/off, restart and sequential start


BASIC SPECIFICATIONS

Height: 0U (vertical mounting)

Max. power: 22 kW

Voltage: 240/415V

Current: 32 A

Phase: three-phase

Input: 1× IEC 60309 3P

Output sockets: 24× IEC-320-C13, 24× IEC-320-C39

Circuit breakers: 6 single-pole

Socket control: yes
