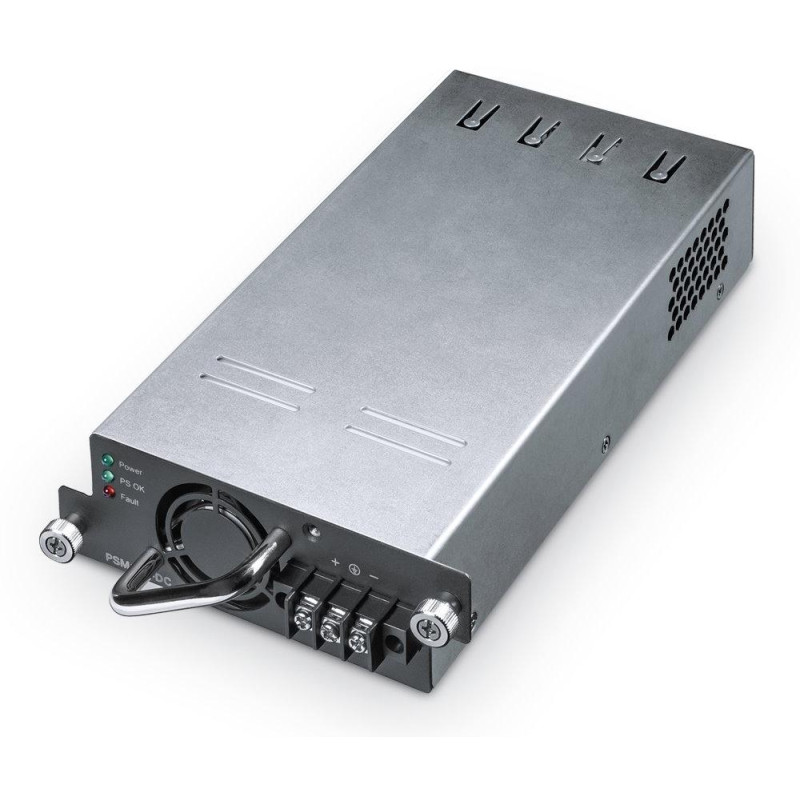

TP-Link PSM150-DC power supply module 150W DC, for DS-P7001-08 and DS-P7001-16

Redundant power module with DC input and maximum output power of 150 W.

TP-Link PSM150-DC is a specialized power module designed for GPON OLT systems , which converts -48 V to -60 V DC input voltage to a stable 12 V DC output voltage with a current rating of up to 12.5 A. The module is designed as a hot-swap solution, meaning it can be installed or replaced without interrupting system operation.

The power module is equipped with comprehensive protection functions against overvoltage, undervoltage, short circuit and overcurrent, ensuring safe and reliable operation. The product is compatible with TP-Link GPON OLT devices, specifically with models DS-P7001-08 and DS-P7001-16.

Operating conditions and reliability
The power module is designed for continuous operation over a wide temperature range of 0°C to 50°C and relative humidity of 10% to 90% non-condensing. For storage, a temperature range of -40°C to 70°C is specified.

Monitoring and diagnostics
Integrated LED indicators provide instant visual information about the power module status. Power, PS OK and Fault indicators allow for quick diagnosis of potential problems and verification of proper functionality.

Redundant power system
The module is part of a redundant power supply solution that increases the reliability and availability of GPON OLT systems. In the event of a failure of one module, the second module ensures uninterrupted operation.

BASIC SPECIFICATIONS

Input voltage: -48 V to -60 V DC

Input current: 6 A

Output voltage: 12V DC

Output current: 12.5A

Maximum power: 150W

Dimensions: 120 × 213 × 41.8 mmbr />
Operating temperature: 0°C to 50°C

Storage temperature: -40°C to 70°C

Operating humidity: 10% to 90% (non-condensing)

LED indicators: power, PS OK, Fault

Compatibility: DS-P7001-08, DS-P7001-16
