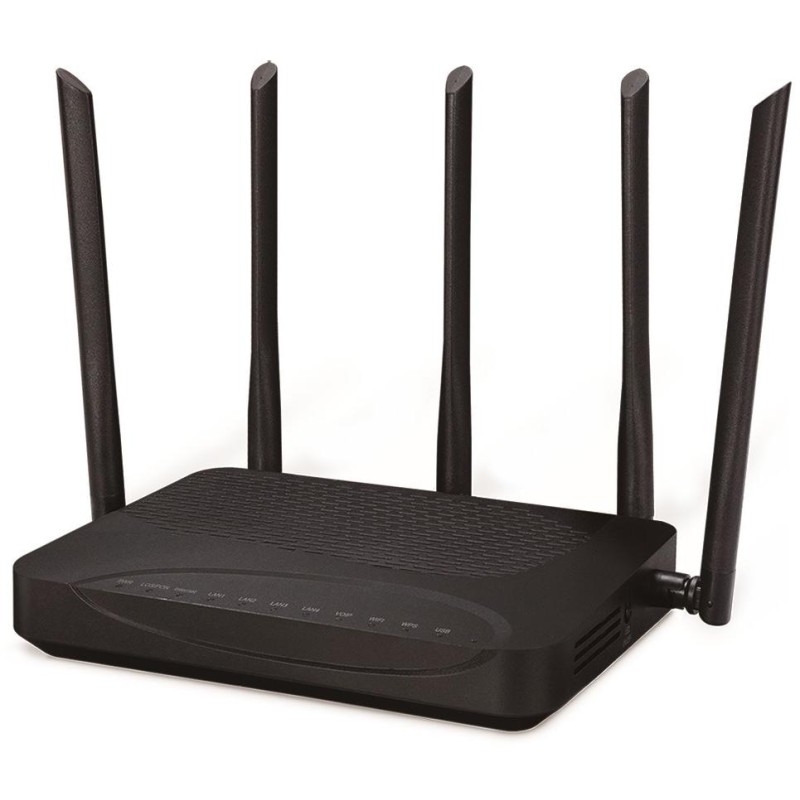

Planet GPN-400AXV GPON HGU, 4x1Gb, 3000Mbps 802.11AX Wireless, Wi-Fi 6, GUI Management

The GPON Wi-Fi ONU client unit is equipped with one GPON port (SC/UPC), 4 Gigabit RJ-45 ports and one FXS RJ-11 port . The unit serves as a Gigabit switch or router with a firewall, providing users with an ideal solution for sharing high-speed broadband optical connections.
Combined with PLANET GPL-8000, it provides a highly efficient solution for FTTH network. It supports QoS and VLAN.
The dual-band GPN-400AXV unit supports 802.11a/b/g/n/ac/ax standards and provides transfer speeds of up to 2402 Mbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band.
Support for web-based graphical user interface (GUI), Telnet, TR-069, OMCI and OAM management methods, and firmware update via remote platforms.

There is a USB host port for connecting an external drive or 4G module.
The maximum speed for downstream is 2.5 Gbps and for upstream it is 1.25 Gbps up to a distance of 20 km .

BASIC SPECIFICATIONS

Features:

Interface : 1× GPON (SC/UPC), 4× RJ-45 10/100/1000Base-T, 1× FXS (RJ-11), 1× USB 2.0
Data transfer speed : 2.5 Gbps / 1.25 Gbps (Download/Upload)
Wi-Fi : 802.11a/b/g/n/ac/ax
Power supply : 12 V DC (1.5 A), power consumption up to 18W
Operating temperature : 0 to +50 °C
Weight : 500g
Dimensions : 244.3 × 193 × 162.15 mm
