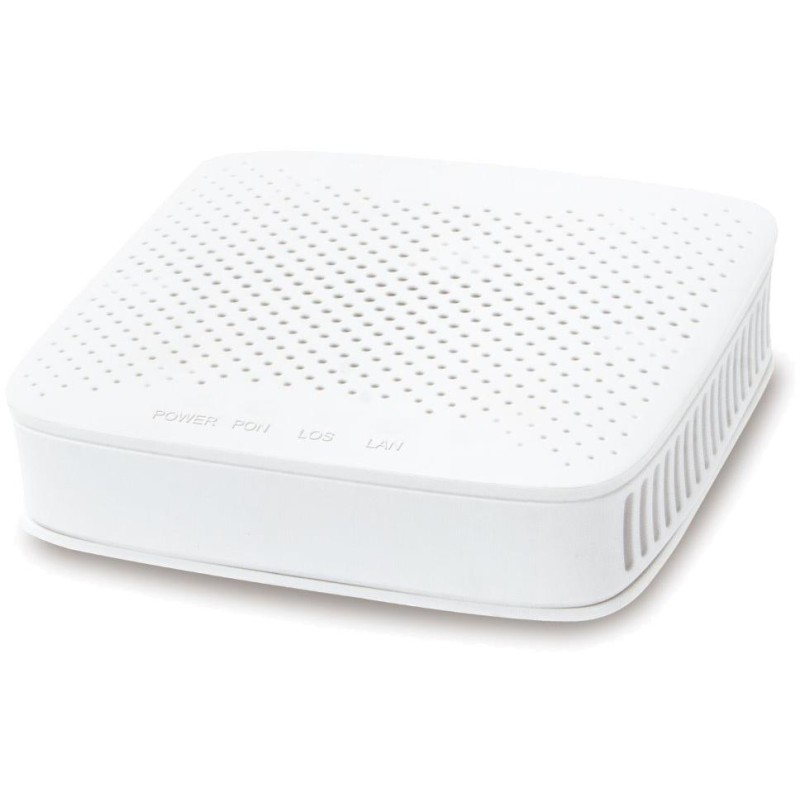

Planet GPON/GEPON ONU, 2.5G GPON (SC/UPC), 1x 1Gb RJ-45

PLANET GPN-100

The Gigabit Passive Optical Network (GPON) ONT client unit has one GPON port (SC/UPC) and one Gigabit RJ-45 port. In conjunction with PLANET GPON OLT, it provides a highly efficient solution for FTTx networks. The unit complies with GPON ITU-T G.984/G.988 standards.

The maximum speed for downstream is 2.5 Gbps and for upstream is 1.25 Gbps . Coverage up to 20 km .

BASIC SPECIFICATIONS

Interface: 1× GPON (SC/UPC), 1× RJ-45 10/100/1000Base-T

Wavelength: 1490/1310 nm (Rx/Tx)

GPON standard: ITU-T G.984/G.988, ITU-T Y.1291

Data transfer speed: 2.5 Gbps / 1.25 Gbps (Download/Upload)

Wi-Fi: no

Chipset: RealTek RTL9601B

Power supply: 12V DC (0.5A)

Operating temperature: 0 to +50 °C

Weight: 100g

Dimensions: 80 × 75 × 24 mm
