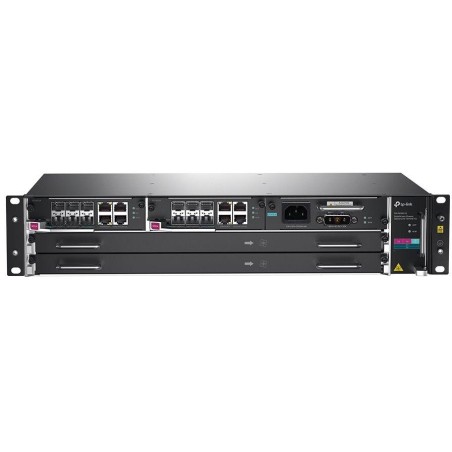

TP-Link DS-P8000-X2

Optical Line Terminal OLT is the central unit for building a GPON network. It contains two control units and two slots for service boards (e.g. DS-LGPA-16 and DS-LGPA-08), which can offer up to 32 GPON ports or 32× XGS-PON & GPON combined ports . It supports a splitting ratio of 1:128 for GPON services and 1:256 for XGS-PON . It supports redundant power supply of AC 100-240V and DC -38.4-57.6V .

•

• 32× PON ports: 2× service boards support up to 32 GPON ports or 32× XGS-PON & GPON combined ports.

• High scalability: Supports a splitting ratio of up to 1:128 for GPON and 1:256 for XGS-PON, enabling the connection of a large number of users.

• High reliability: Two main control units ensure automatic service switching without interruption.

• High-speed uplink ports: Offers six 10G SFP+ ports (per controller) for high-capacity network connectivity.

• Dual Power Supplies: Operator-grade reliability with a swappable AC+DC power supply.

• L2 & advanced L3 features: Satisfy a variety of commercial needs.

• Centralized Management: Supports management via DeltaStream PON Management System (DPMS), SNMP, CLI, and web interface.


GPON attributes:

Max. division ratio: 1:128 for GPON

Max. splitting ratio: 1:256 for XGS-PON

Transmission distance: 20 km

Data transfer rate for GPON: Downstream: 2.5 Gb/s, Upstream: 1.25 Gb/s

Data transfer rate for XGS-PON: Downstream: 9.953 Gbps, Upstream: 9.953 Gbps

GP0N Wavelength: Tx - 1490 nm, Rx - 1310 nm

The package includes 2x power cables (AC + DC), brackets, screws, rubber feet and console cable.

BASIC SPECIFICATIONS

Interface: 2× service board slot, 2× control unit (6× 10G SFP+, 1× GbE RJ-45, 1× RJ-45 management port, 1× RJ-45 console port, 1× alarm port)

Power supply: dual, AC 100-240V (50/60Hz), DC -38.4-57.6V

Consumption: max. 262 W

Operating temperature: 0 to +50 °C

Dimensions: 443 × 271.3 × 88 mm
