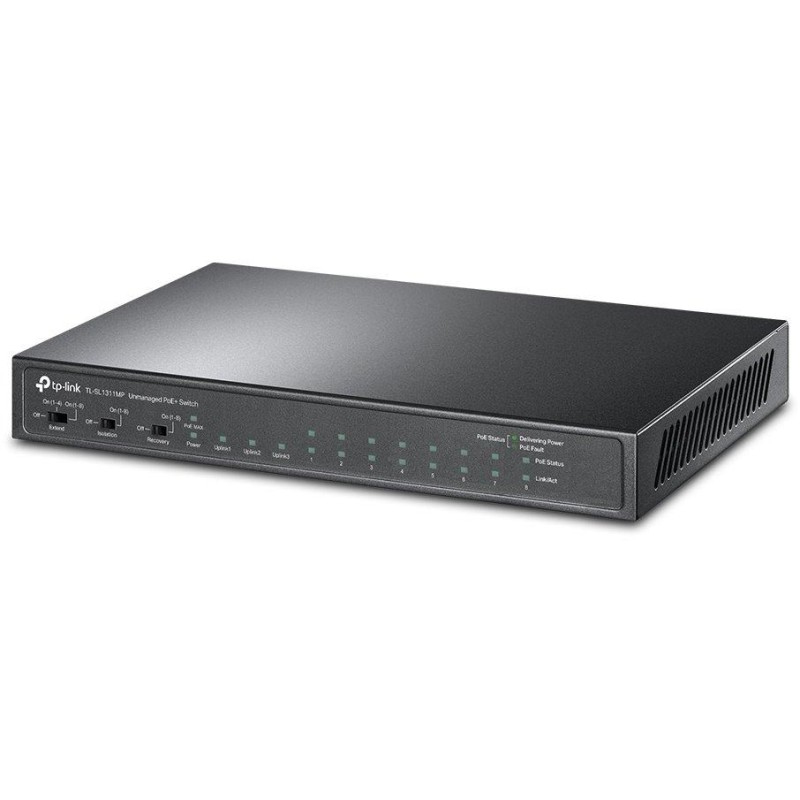

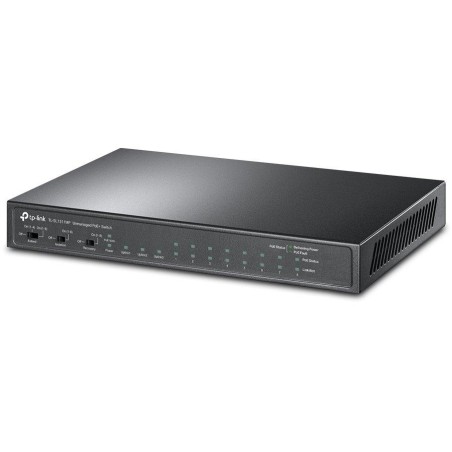

TP-Link TL-SL1311MP - desktop switch with 8 10/100 Mbit/s ports, 3 gigabit ports and 8 PoE+ ports

TP-Link TL-SL1311MP

The 11-port desktop PoE/PoE+ switch enables the use of 3x Gbit/s uplink ports and provides a switching capacity of up to 7.6 Gbit/s . It complies with the 802.3af/at PoE+ standard, which supports up to 30 W on each port . The total power budget of 124 W PoE from all 8 ports provides a wide range of applications, such as surveillance systems for offices, student dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers and other devices. "Plug and Play" technology allows for connection without the need for configuration. The PoE power transmission distance in extended mode reaches up to 250 m, which is perfect for deploying IP cameras in large areas. With one click, you can activate the isolation mode, which separates data transmissions on ports 1-8 to prevent surveillance and security breaches. This allows the switch to isolate broadcast congestion, improving security and data transmission in the LAN.

The internal components of the TL-SL1311MP switch are protected by a high-quality metal casing, ensuring a long service life. The switch has successfully passed the most stringent tests, so you can always rely on it.

•

• 8x RJ-45 10/100 Mbit/s port, 2x Gigabit RJ-45 port and 1x Gigabit SFP port

• 8x PoE+ ports for data and power transmission

• Supports PoE power supply with a capacity of up to 30 W/port, total power up to 124 W

• Support for PD devices compliant with IEEE 802.3af/at standard

• Data and power transmission up to 250 m in Extend Mode

• Isolation Mode - allows data transmission to be separated to ensure higher security and performance

• PoE Auto-Recovery - Reliable operation of PoE devices (automatically restarts failed or unresponsive powered devices)

• Fanless design - low power consumption and quiet operation

• Plug and Play connection without configuration required


BASIC SPECIFICATIONS

Ports: 8x 100 Mbps RJ-45, 2x GbE RJ-45, 1x GbE SFP

Switch capacity: 7.6 Gbps

Routing speed: 5.6544 Mpps

PoE: yes, 8x 802.3at/af, PoE budget 124 W

Max. power consumption: 140.92 W (5.95 W without PoE)

Dimensions: 209 x 126 x 26 mm
