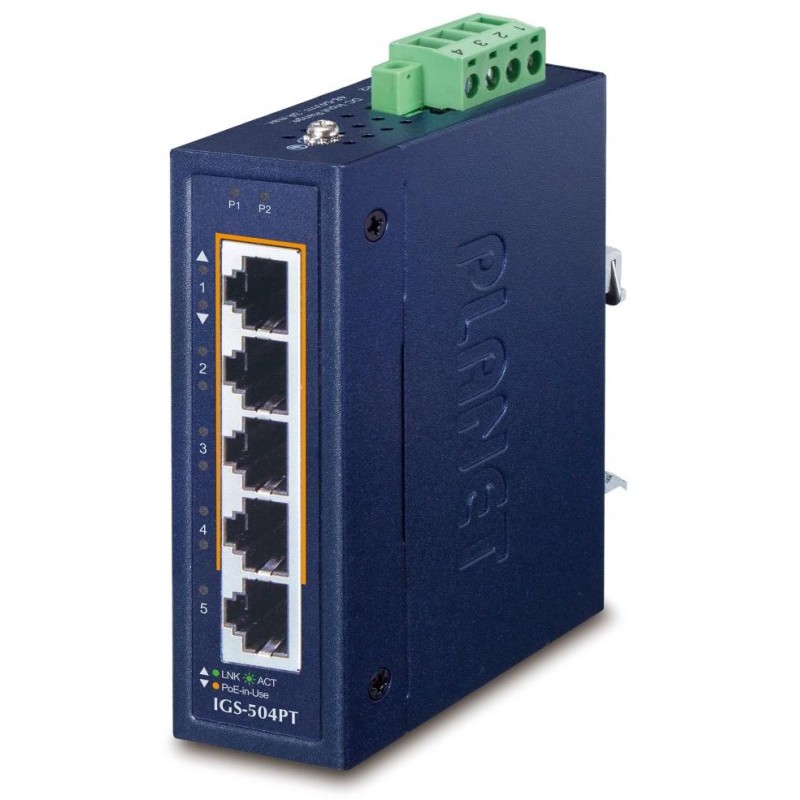

PLANET IGS-504PT
Industrial mini switch offering 5x RJ-45 10/100/1000 Base-T ports, including four ports with PoE+ (802.3af/at) support, power supply up to 30 W per port and total PoE power output of 120 W.
Thanks to its metal housing with IP30 certification, it withstands high temperatures from -40 to +75 °C , making it suitable for demanding operations. The switch's switching capacity is 10 Gbps and its throughput is 7.4 Mpps .
BASIC SPECIFICATIONS
Physical properties:
Ports: 5x RJ-45 10/100/1000 Base-T
Memory: 2k MAC addresses
Throughput: 10 Gbps bus, operational 7.4 Mpps (64 B)
Transmission support: JumboFrame 9 KB
Design: DIN rail, wall-mounted
Power supply: DC 48-54 V (max. 3 A) redundant, with reverse polarity protection function (power supply not included)
Protection: ESD up to 6kV DC
Operating temperature: -40 to +75 °C
Dimensions: 104 x 70 x 30 mm
Weight: 260g
PoE function:
Total power output: 120 W IEEE 802.3af/at
Number of injectors: 4x up to 30 W (max. 30 W at 54 V power supply, max. 15 W at 48 V power supply)
Power supply type: End-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
