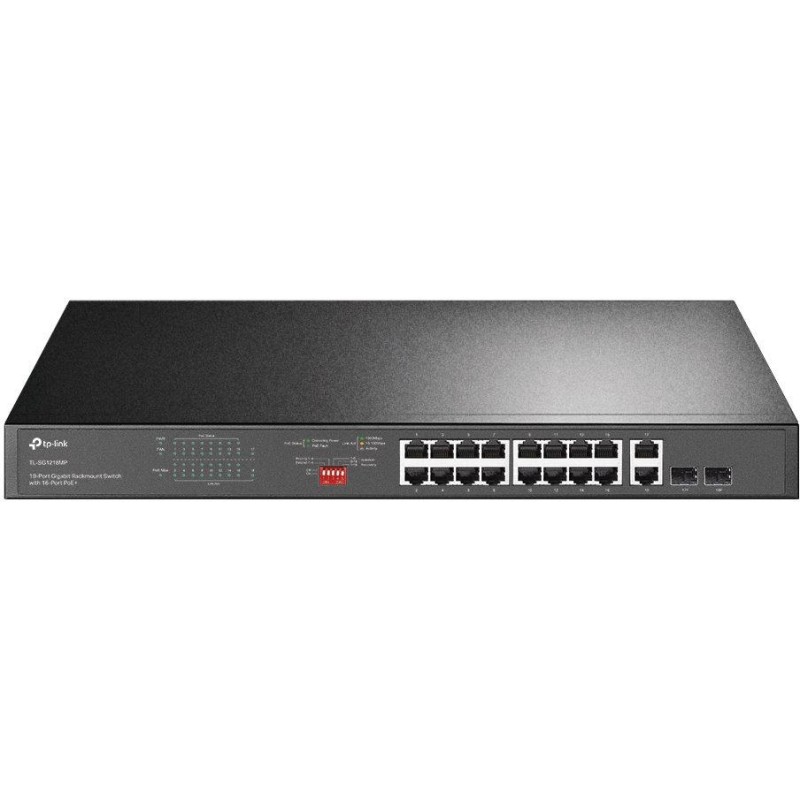

TP-Link TL-SG1218MP 18-port gigabit rack switch with 16 PoE+ ports

TP-Link TL-SG1218MP

Switch offering 16× GbE RJ-45 port and 2× Gigabit combo RJ-45/SFP . 16 ports support PoE+ with total power output up to 250W and power consumption up to 30W/port . Switching capacity reaches up to 36Gbps and routing speed up to 26.78 Mpps .

•

• 16x Gigabit PoE+ RJ-45 port (802.3af/at), 2x Gigabit combo RJ-45/SFP port.

• DIP switch for setting operating modes (Priority, Extend, Isolation and Recovery).

• High power PoE power, up to 30W for each PoE port and 250W for all PoE ports.

• Data and power transmission over distances up to 250 m in Extend mode (ports 1 to 4).

• Priority mode for ports 1-4 and guarantee the stability of sensitive applications such as video surveillance.

• Isolation mode allows you to separate client traffic with one click for increased security and performance.

• PoE Auto Recovery function ensures stable operation of PoE devices by automatically restarting failed or unresponsive PD devices.

• Plug and play, no configuration or installation required.

• 802.1p/DSCP QoS enables smooth latency-sensitive transmission.

• The durable metal housing and professional heat dissipation design ensure a wide operating temperature range (0 to +50°C).


Intelligent power management

When your total power consumption exceeds 250W, intelligent power management automatically turns off power to lower priority ports to ensure power to high priority ports. This protects the device from overload. It also automatically detects the PoE power required for your devices and protects your non-PoE powered devices from damage.

BASIC SPECIFICATIONS

Number of ports: 16× GbE RJ-45 port, 2× Gigabit combo RJ-45/SFP

PoE: yes, 16× 802.3at/af, total power output 250 W

Switch capacity: 36 Gb/s

Routing speed: 26.78 Mp/s

Dimensions: 440 × 180 × 44 mm
