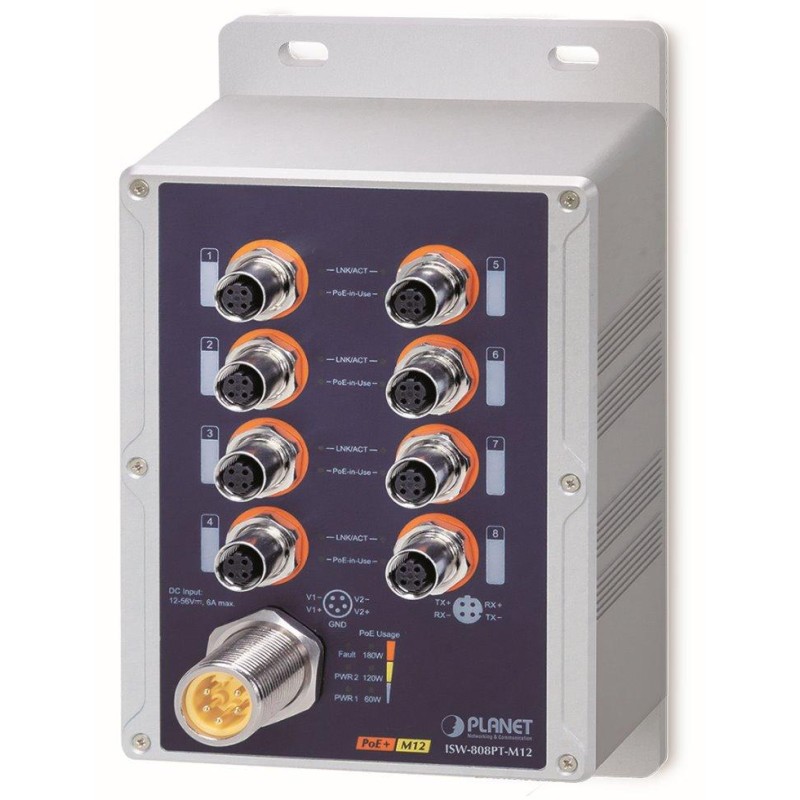

PLANET ISW-808PT-M12
8-port PoE switch 10/100Base-TX (4pin M12 D-coded female connector), 8x PoE+ IEEE 802.3af/at injector for industrial applications with power up to 36 W per port (54 V), total power up to 180 W (at 48-56 V power supply). Redundant DC power supply 12-56 V (max. 6 A).
Waterproof with IP67 protection, metal housing, extended operating temperature range -40 to +75 °C , DIN rail or wall mounting, meets EN50155 standard for mobile installations.
Automatic detection of 10/100Mbps, full duplex , 2k MAC addresses, straight/cross cable detection (auto-MDI/MDI-X), 8 x M12 (4pin D-coded female), 1 x M23 (5-pin A-coded male).
The switch also features ESD and EFT (up to 6 kV) protection against electrostatic discharge and fast transients. The version with PoE IEEE 802.3at allows direct power supply to up to 8 end devices, making it an ideal element for applications with reduced end device power supply capacity .
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x M12 10/100Base-TX 4-pin D-coded F, 1 x M23 5-pin A-coded M
Memory: 2k MAC addresses
Throughput: 1.6 Gbps bus, 1.19 Mpps operational
Design: DIN rail, wall-mounted
Power supply: DC 12-56 V redundant power supply (not included), total power consumption up to 197.3 W
Protection: ESD up to 6kV, EFT up to 6kV
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 204 x 124 x 53 mm
Weight: 1750g
POE function:
Total power output: 180 W, IEEE 802.3af/at
Number of injectors: 8 x up to 36 W
Power supply type: End-span
Advanced features:
automatic detection of powered device (PD)
automatic detection of straight/cross cable on each port
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short voltage dips, short interruptions and slow voltage changes
