Planet POE-173S-12V, PoE++ splitter, IEEE802.3bt, output 12V DC, DIN, 0~50°C

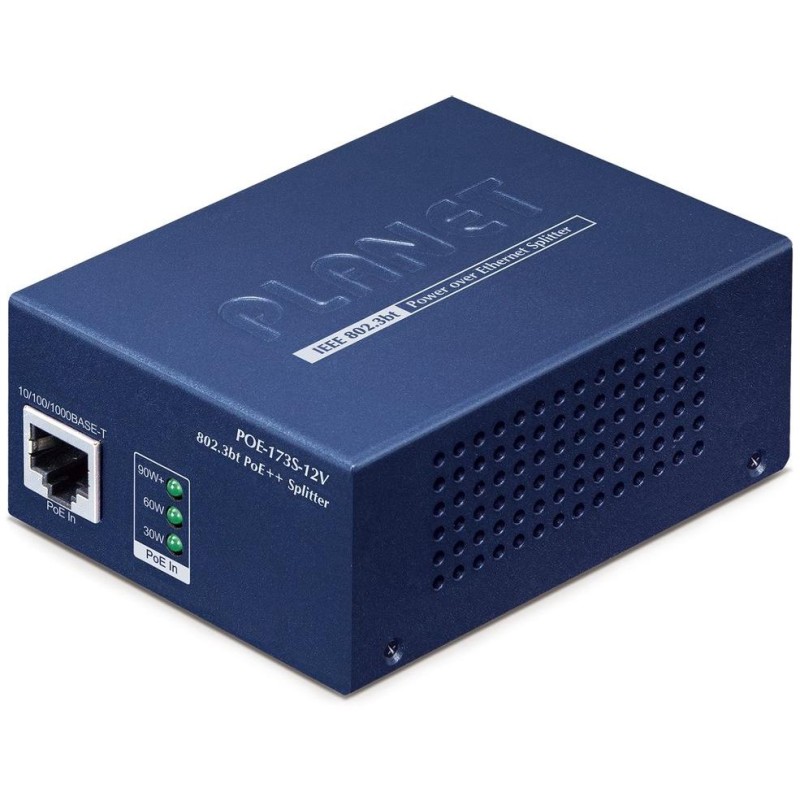

PLANET POE-173S-12V

The Ethernet gigabit splitter for power over UTP cable supports the 802.3bt PoE++ standard and allows direct power supply to remote devices up to 60 W. In addition to powering over 2-pair twisted UTP cable, the splitter is also capable of transmitting Ultra PoE power and data using all four pairs of Cat5e/6 Ethernet cabling. Output voltage 12 V DC . Supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. Desktop or wall installation.

The POE-173S-12V is designed for use with PTZ cameras, touch monitors, POS terminals or Wi-Fi access points. It can also be used to power devices such as embedded computers or LCD displays, kiosks, etc.

BASIC SPECIFICATIONS

Physical properties:

Interface: 2× RJ-45 10/100/1000Base-T (1× data output, 1× PoE + data input)

Design: desktop, wall-mounted, DIN rail (DIN mounting kit not included)

Total power supply: up to 60 W, DC 12 V, max. 5 A

Power supply: PoE IEEE 802.3bt PoE++, DC 48-56 V

Operating temperature: 0 to 50°C, humidity 5-95%

Dimensions: 94 × 70.3 × 39.2 mm

Weight: 265g

POE function:

Total power output: IEEE 802.3bt PoE++ (backward compatible with IEEE 802.3at PoE+)

Number of injectors: 1× up to 30/ 60/ 90+ W

Power supply type: End-span, Mid-span
