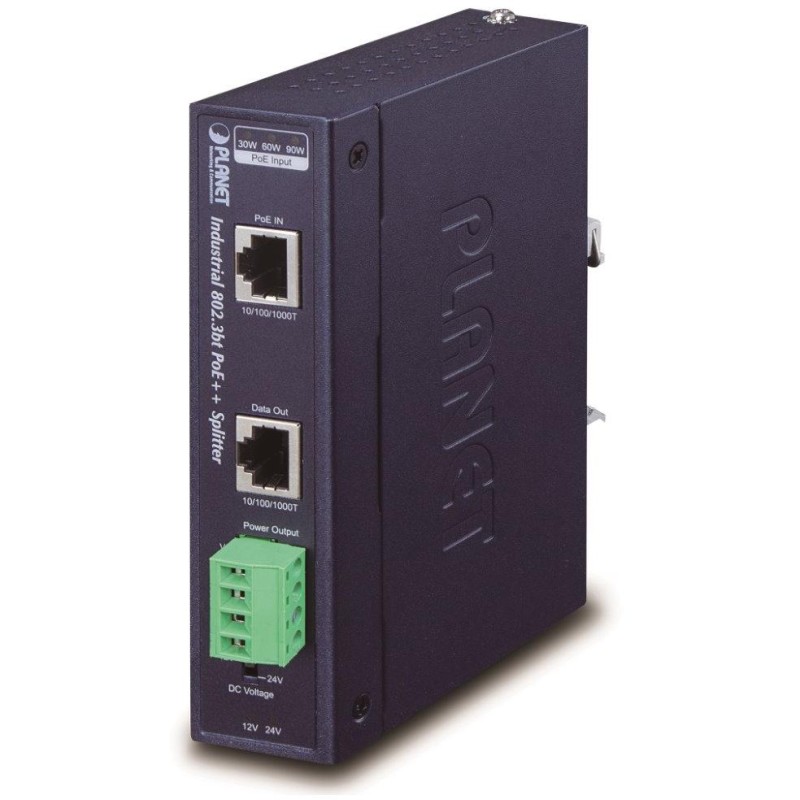

PLANET IPOE-173S
Industrial power converter via Ethernet cable of the 802.3bt standard (splitter, 12V/24V DC output) with a power of up to 70 W.
It also works on a 1000Base-T gigabit connection. IP30 protection, aluminum housing, operating temperature -40 to 75°C, DIN rail or wall mounting.
Industrial "Power over Ethernet splitter" IEEE 802.3bt with a maximum load capacity of 70 W for powering devices over Ethernet. Designed for outdoor use with PTZ cameras or information kiosks. The splitter according to the IEEE 802.3bt standard has a high load capacity, making it an ideal element for powering remote POS kiosks, LCD panels, thin clients or cameras with built-in heaters.
PoE power supply can also be implemented on gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T. The splitter's output voltage of 12V/24V DC can be selected using a DIP switch.
BASIC SPECIFICATIONS
Physical properties:
Ports: 2 x RJ-45 10/100/1000 Mbps : 1 x PoE Input, 1 x Data Output
Design: DIN rail, wall-mounted
Power supply: PoE 48-56V DC
Operating temperature: -40 to 75 °C, humidity 5 - 95%
Dimensions: 135 x 87.8 x 32 mm
Weight: 445g
POE function:
Total power output: IEEE 802.3bt (backward compatible with IEEE 802.3at, IEEE 802.3af)
Number of injectors: 1 x up to 70 W
Power supply type: End-span, Mid-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
