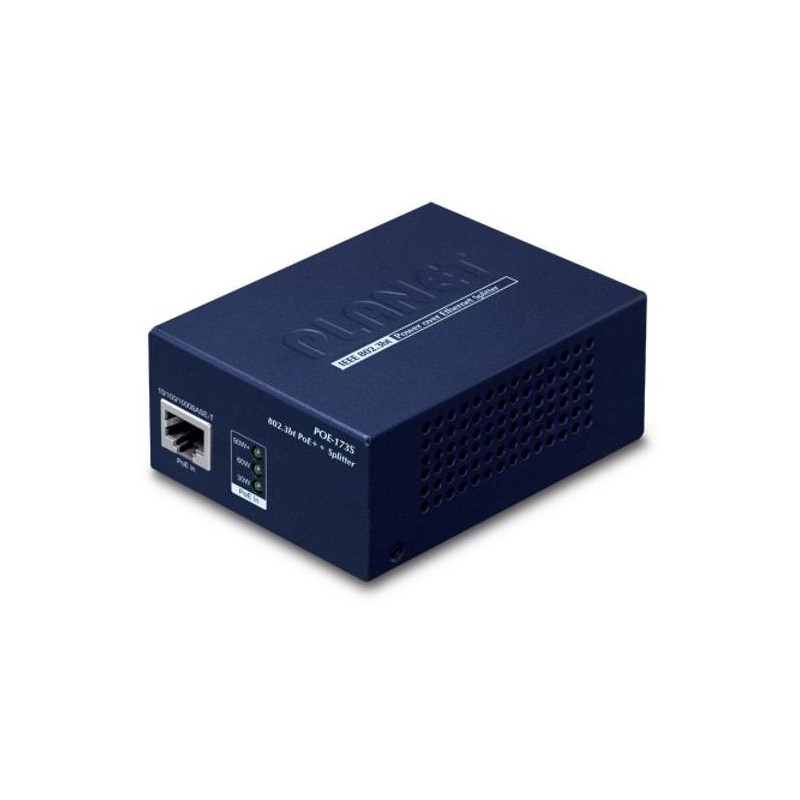

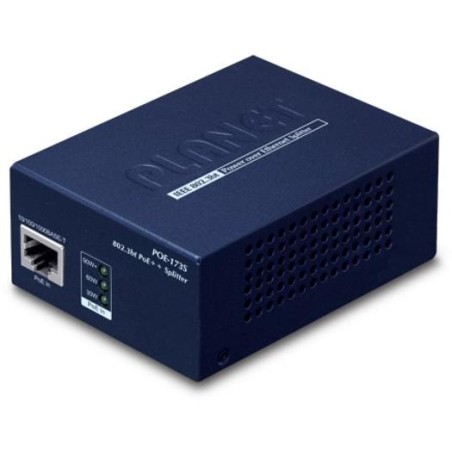

PLANET POE-173S

The Ethernet gigabit splitter for power over UTP cable supports the 802.3bt PoE++ standard and allows direct powering of remote devices up to 60 W. In addition to powering over 2-pair twisted UTP cable, the splitter is also capable of transmitting Ultra PoE power and data using all four pairs of Cat5e/6 Ethernet cabling. Selectable output voltage 12 V, 19 V, or 24 V DC, switching by DIP switch. Supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. Desktop or wall installation.

The POE-173S is designed for use with PTZ cameras, touch monitors, POS terminals, or Wi-Fi access points. It can also be used to power devices such as embedded computers or LCD displays, kiosks, etc.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1 x RJ-45 10/100/1000BASE-T data + power input, 1 x RJ-45 10/100/1000BASE-T data output

Design: desktop, wall-mounted

Power supply: PoE 48-56V DC

Operating temperature: 0 to 50 °C, humidity 5 - 95%

Dimensions: 94 x 70.3 x 39.2 mm

Weight: 265g

POE function:

Total power output: IEEE 802.3bt PoE++ (backward compatible with IEEE 802.3at PoE+)

Number of injectors: 1 x up to 60 W

Power supply type: End-span, Mid-span
