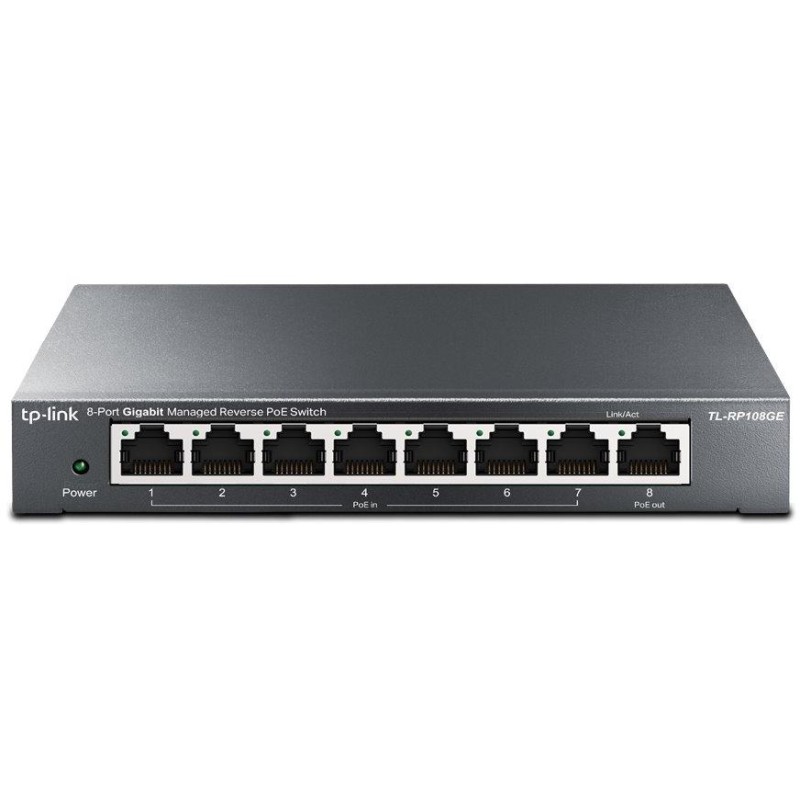

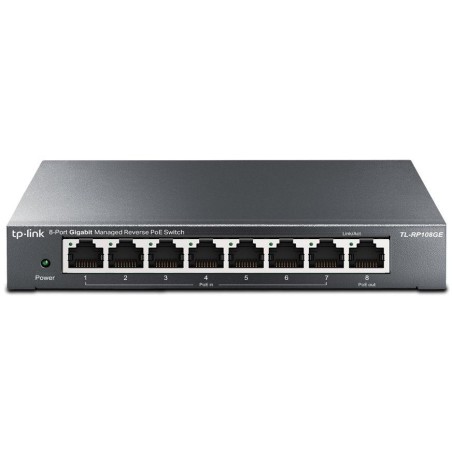

TP-Link TL-RP108GE - PoE Reverse Switch with 8 gigabit ports

TP-Link TL-RP108GE

Reverse managed gigabit PoE switch in a compact metal body. It offers eight GbE RJ-45 ports , seven of which have PoE-in and one with PoE-out. The Reverse PoE Switch greatly simplifies power supply when installed in corridors and at the same time provides broadband access for a typical household or, for example, a small business that already has cables running in the building.

Depending on the need, ports 1 to 7 are used to power the switch, which can then power other devices via passive PoE or a jack connector (such as an ONT unit). By switching data and integrated PoE into a single device, the TL-RP108GE saves space, minimizes cable clutter, and eliminates the need for a dedicated power outlet - reducing installation costs and simplifying the use of PoE devices.

•

• 7x PoE input and 1x PoE output (10/100/1000 Mbps RJ-45 ports)

• Reverse PoE

• 1x DC output port that supports both 5V and 12V voltage (DIP switch)

• Intelligent management via web interface

• Green technology reduces electricity consumption


BASIC SPECIFICATIONS

Number of ports: 8 x GbE RJ-45

PoE: yes, passive

Switch capacity: 16 Gbps

Routing speed: 11.9 Mpps

Power output: DC 5V or 12V (switchable)

Dimensions: 158 x 99.1 x 25 mm
