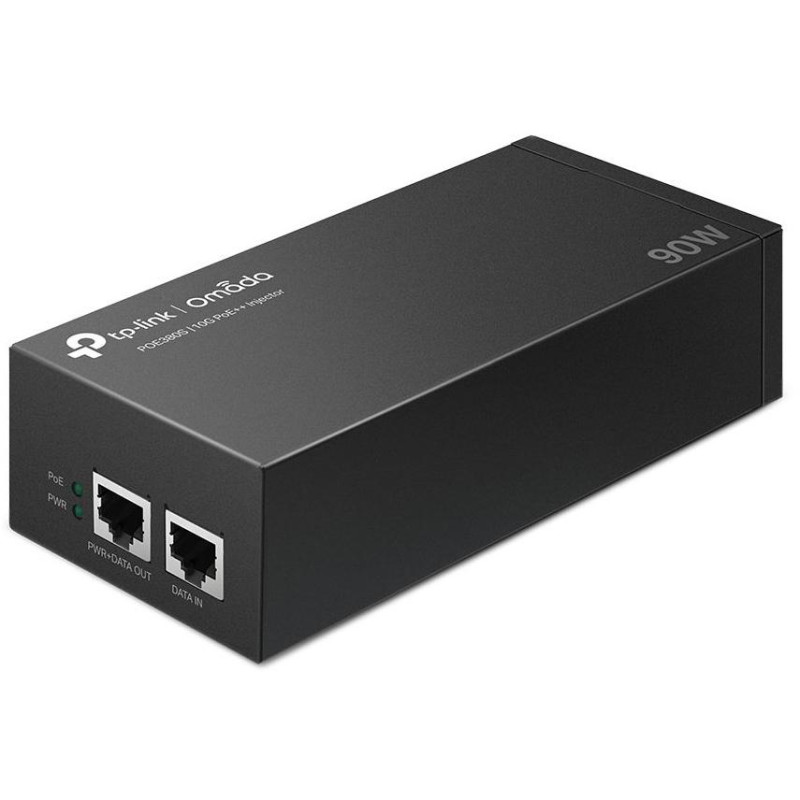

TP-Link POE380S Omada 10G PoE++ injector, 802.3bt/at/af, 90W

Powerful 10G PoE++ injector delivering up to 90W of power over a standard Ethernet cable.

TP-Link's Omada PoE++ POE380S injector fully complies with IEEE 802.3af/at/bt standards, enabling data transmission at up to 10Gbps along with up to 90W of power delivery (802.3bt type 4 standard) over a single Ethernet cable. This solution significantly reduces infrastructure costs and enables easy network expansion to locations without access to power grids.

The device is ideal for powering PTZ IP cameras, access points, LED lighting and other network elements requiring high power. Thanks to automatic detection of the required power, it always delivers exactly the amount of power that the connected device requires.

BASIC SPECIFICATIONS

Supported standards: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

Ports: 1× 10G RJ-45 data-in, 1× 10G RJ-45 power+data-out (max. 90 W), 1× AC power connector

Maximum transfer rate: 10 Gbps

Maximum output power: 90 W

Input power: 100-240V, 50/60Hz, 1.6A

Dimensions: 155 × 70 × 42 mm

Operating temperature: 0 to +45 °C

Certification: FCC, CE, RoHS
