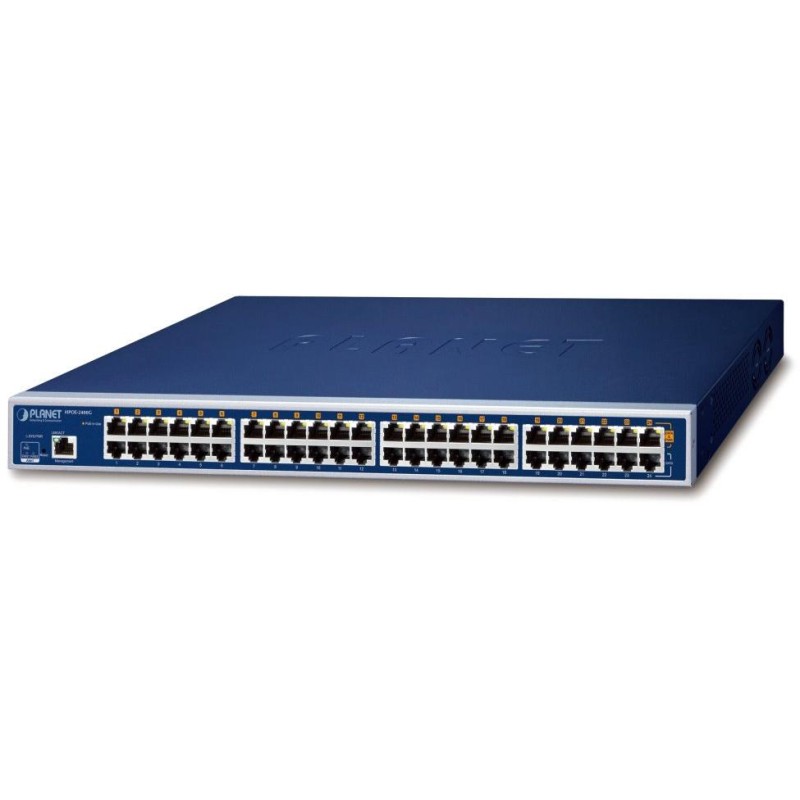

Planet HPOE-2400G v6 PoE+ injector 802.3at, 24+24 ports, Gigabit, scheduler, power up to 720W

PLANET HPOE-2400G v6

24-port injector for power over Ethernet, 24× RJ-45 (data input) + 24× RJ-45 PoE/PoE+ (data + power output), PoE budget 720 W (max. 36 W/port) , 2× fan with automatic speed control, AC 100–240 V power supply.

Web management, SNMP monitoring + SNMP trap, scheduler, TLS v1/v2, Planet DDNS & Easy DDNS, Planet NMS System support, CloudViewer and Smart Discovery Utility , network cybersecurity solution (Cybersecurity), SPI Firewall, intelligent PoE (PD Alive Check, PoE Schedule, PoE status), mid-span PoE.

Powerful PoE (Power over Ethernet) injector for powering devices over Ethernet according to IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) multi-power devices. It is designed to power devices such as PTZ or Speed-Dome IP cameras, Wi-Fi access points, VoIP phones, etc.

There are a total of 24 ports available with a total output power of up to 720 W, the injector is pass-through, and the power is connected to the existing Ethernet Cat5/5e/6 line.

If the end device does not support IEEE 802.3af/at, you will need, for example, a POE-161S splitter , which will provide power for the remote device for the given cable route.

BASIC SPECIFICATIONS

Interface: 24× RJ-45, 24× RJ-45 PoE/PoE+, 1× RJ-45 (management)

Total power output: up to 720 W (PoE 802.3af, PoE+ 802.3at)

Port load capacity: max. 36 W (15.4 W for 802.3af)

Power supply: internal AC power supply 100-240 V AC (50/60 Hz, 12 A)

Operating temperature: 0 to +50 °C

Dimensions: 440 × 300 × 44 mm

Weight: 4.3 kg
