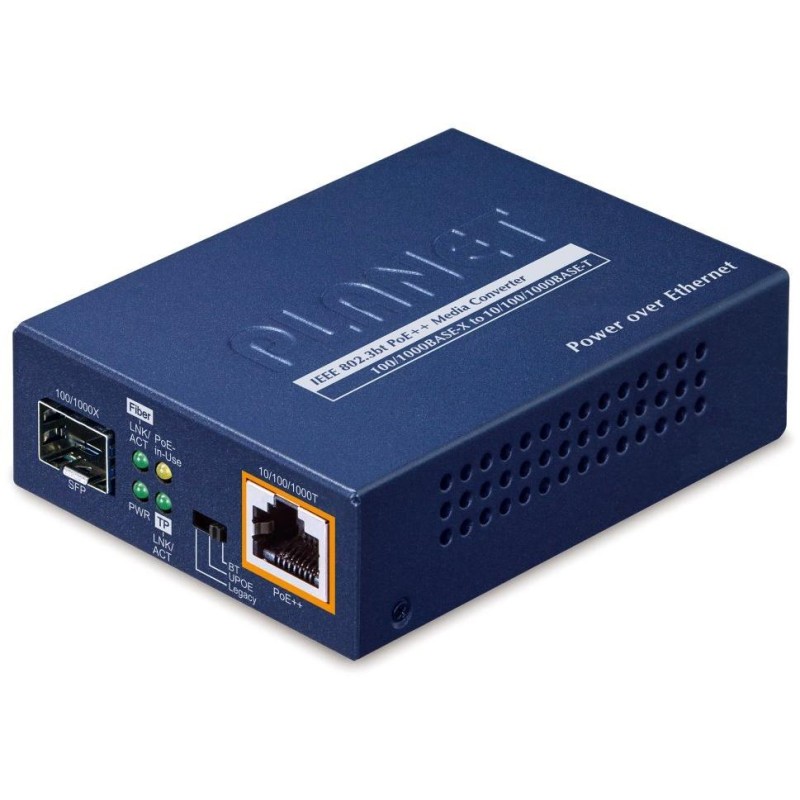

Planet GUP-805A-95W RJ45/SFP converter, 1Gbps, PoE injector 802.3bt 95W

PLANET GUP-805A-95W

PoE++ converter for easy transition between metallic and optical lines ( 100/1000 Base-X to 10/100/1000 Base-T ).

Power supply in the range of DC 52–55 V (power adapter included), PoE++ output with power up to 95 W , metal body, normal operating temperature 0 to 50 °C .

DIP switch for mode switching (BT/UPOE/Legacy), LED indication for easy diagnostics and compact dimensions. Mounting directly on the wall or optionally on a DIN rail .

With a total power output of up to 95W for various types of PoE applications, the GUP-805A-95W provides a fast, secure, and powerful networking solution for small businesses and enterprises.

In places where it is difficult to find a power outlet, the GUP-805A-95W provides the easiest way to power network devices such as PTZ and IP cameras, VoIP phones, wireless access points, digital signage displays and other network devices that require higher power for normal operation. This allows users to flexibly install IEEE 802.3bt/at/af compliant network devices in public areas such as railway stations, highways, airports and campuses. The converter technology uses a Store-and-Forward mechanism, which should actively prevent transmission loss.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1× RJ-45 10/100/1000Base-T with PoE++ function, 1× SFP 100/1000Base-X

Transmission support: Frame 9KB

Design: wall-mounted, DIN rail (optional)

OAM support: no

Power supply: 52–55 V DC, max. total power consumption up to 106 W (power supply included)

Protection: no

Operating temperature: 0 to 50 °C

Dimensions: 94 × 70 × 26 mm

Weight: 144g

Supported SFP modules:

MGB: MGB-GT, MGB-SX(V2), MGB-SX2(V2), MGB-LX(V2), MGB-L40, MGB-L80, MGB-L120(V2), MGB-LA10(V2), MGB-LB10(V2), MGB-LA20(V2), MGB-LB20(V2), MGB-LA40(V2), MGB-LB40(V2), MGB-LA80, MGB-LB80

MFB: MFB-FX, MFB-F20, MFB-F40, MFB-F60, MFB-F120, MFB-FA20, MFB-FB20

POE function:

Total power output: 95 W, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Number of injectors: 1× up to 95 W

Power supply type: End-span, Mid-span

Advanced features:

automatic detection of powered device (PD)
Legacy mode for identifying valid signatures of older devices that do not fully comply with 802.3af/at/bt standards
compatibility with PoE++ hub POE-173S

---

Compatible with PoE++, the POE-173S splitter provides simplified power supply for non-PoE devices such as laptops, thin clients, point-of-sale systems (POS) and other network devices. The POE-173S receives data and power from the GUP-805A-95W and distributes digital data and power to three selectable outputs (12V, 19V or 24V DC).

---

---

---
