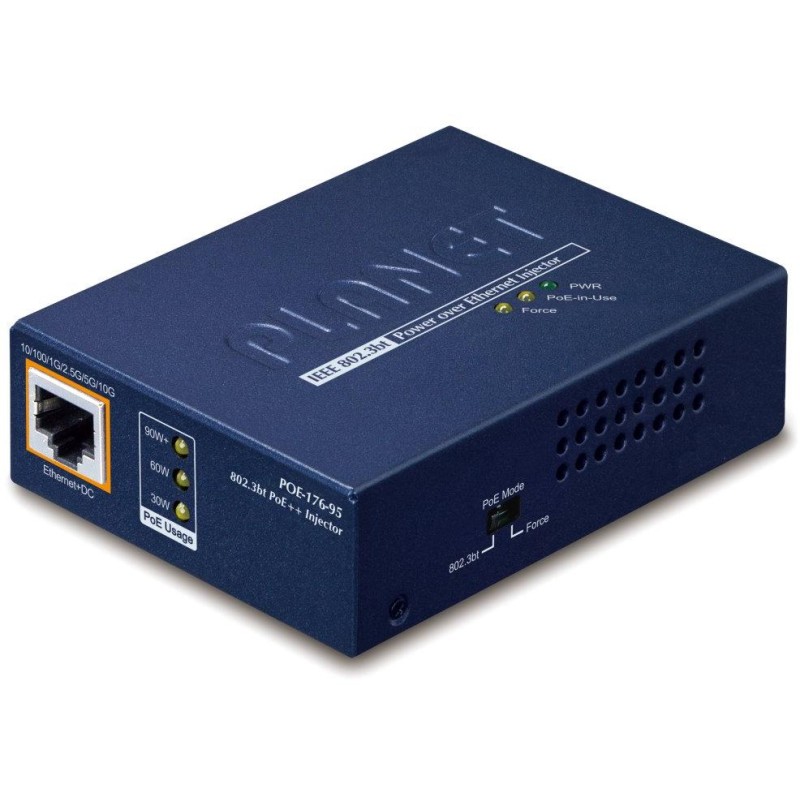

Planet POE-176-95 Ultra PoE++ injector 802.3af/at/bt, up to 95W, 1G/2.5G/5G/10Gbps, 52-56VDC

PLANET POE-176-95

Single-port 10-gigabit Ultra PoE++ (802.3bt) injector for power supply via Ethernet cable according to IEEE 802.3bt up to 95 W power consumption.

It is equipped with two RJ-45 10/100/1G/2.5G/5G/10G Base-T ports for processing extremely large data streams.

End-span + Mid-span, backward compatible with 802.3af/at, Force mode (max. 60 W) , Plug and Play, DC 52-56 V power supply.

It is designed specifically for the increasing power consumption demands of devices such as PTZ cameras, PoE lighting, all-in-one computers and other network devices requiring sufficient power supply.

BASIC SPECIFICATIONS

Interface: 2x 10G RJ-45 (1x data input, 1x PoE output (data + power)

Total power output: max. 95 W, IEEE 802.3/802.3u/802.3ab/802.3bz/802.3af/802.3at/802.3bt

Port load capacity: up to 95 W

Power supply: DC 52-56V, max. 2.5A

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70.3 x 26.2 mm

Weight: 195g
