Ubiquiti PoE Over 2-Wire Retrofit Extender - Set of PoE extenders for coaxial cable or twisted pair, PoE+/PoE++

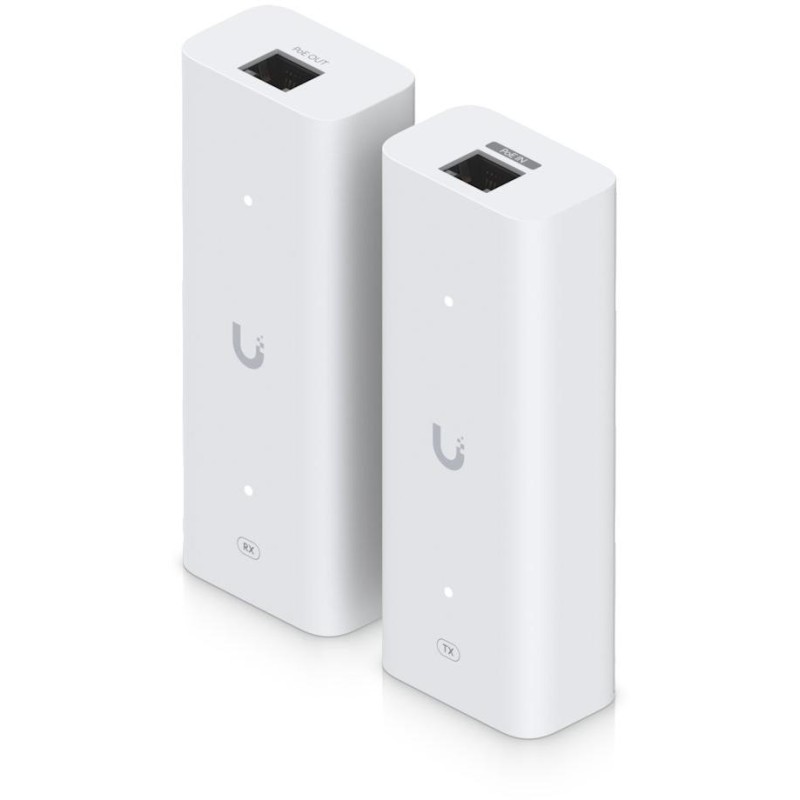

Ubiquiti PoE Over 2-Wire Retrofit Extender

A pair of extenders that extend/provide PoE over twisted pair or coaxial cables , ideal for retrofit or upgrade cases.

•

• PoE power supply via Coax & UTP

• Coaxial connector: BNC female

• Power consumption 3 W (without PoE output)

• ESD/EMP protection – air: ±8 kV, contact: ±4 kV

• Operating temperature: -10 to +40 °C


BASIC SPECIFICATIONS

Transmitter

Interface: 1× PoE++ input, 1× 2-wire output, 1× 2-wire coaxial cable adapter (BNC)

PoE support: yes, 1x PoE++ input (DC 50 V / 1.2 A)

Dimensions: 105 × 40 × 25 mm

Weight: 77 g + 140 g adapter

Receiver

Interface: 1× PoE/PoE+ output, 2-wire input, 1× 2-wire coaxial cable adapter (BNC)

PoE support: yes, 1x PoE+ output (DC 48 V / 0.6 A)

Dimensions: 105 × 40 × 25 mm

Weight: 79 g + 140 g adapter

Manual (assembly instructions):

dl.ui.com/qig/uacc-retrofit-poe-2wire
