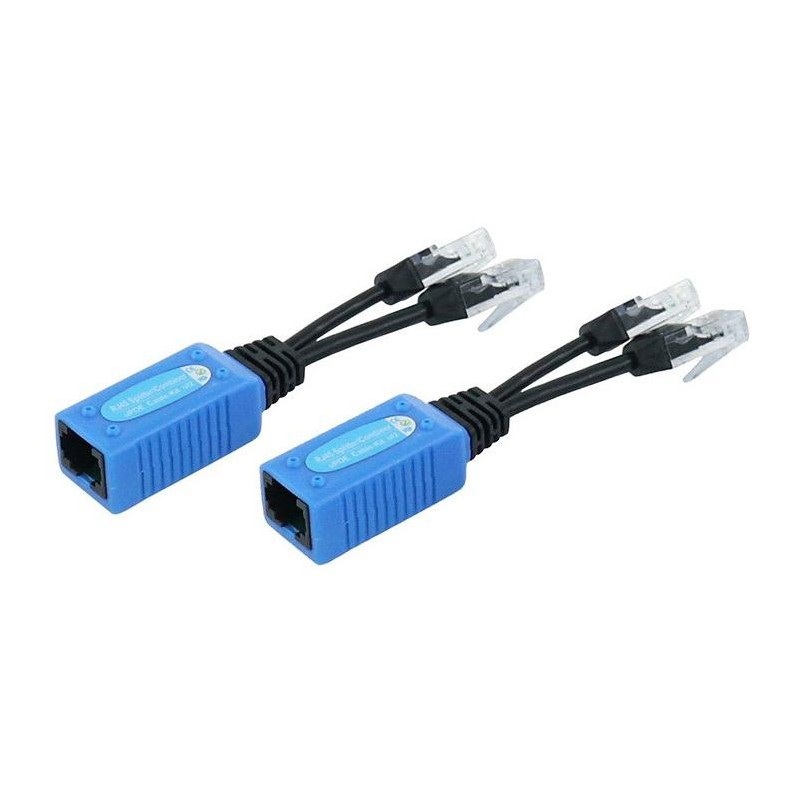

XtendLan POE extender, 2x PoE per one UTP cable, 100Mb

XtendLan POE-PAS-D

The multifunctional RJ-45 splitter/extender can connect two PoE inputs (2× 25 W - 802.3at) to double the power output or transmit data from two Ethernet inputs using a single cable.

Use as uPoE

•

• Use with an injector to double the power of a single device from 25W to 50W - combines two 802.3at ports into one uPoE port.

• Supports gigabit transfer speeds and up to 50W transmission over Cat6 cable.


Use as an Ethernet repeater

•

• It is used to connect two 10/100 Mbps Ethernet ports to one long Ethernet cable with or without PoE.

• Supports 2 separate connections with 10/100 Mbps data transfer rates and up to 25 W for each (50 W total) on a CAT5e cable.

• Connect the two RJ-45 connectors to the switch, and then on the other side, connect each RJ-45 connector to a camera, Wi-Fi access point, or IP phone.

• Use any Cat5e cable between the two devices.


BASIC SPECIFICATIONS

Power supply: 5/12/24/48 V, via PoE switch or injector

Input voltage: max. 57 V

Transmission distance: 30-40m

Connectors: 1x RJ-45 (F), 2x RJ-45 (M)

Material: plastic

Cable length: 12.5 cm

Weight: 57g

Color: blue–black

Number of pieces in the package: 2
