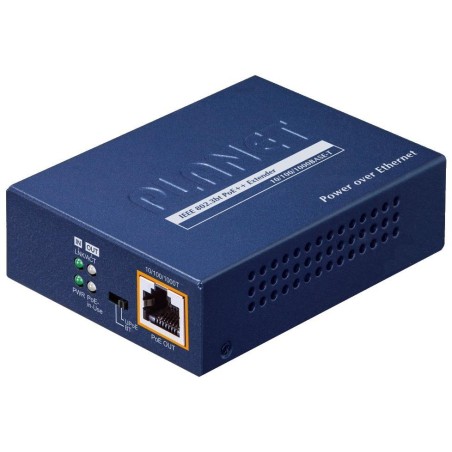

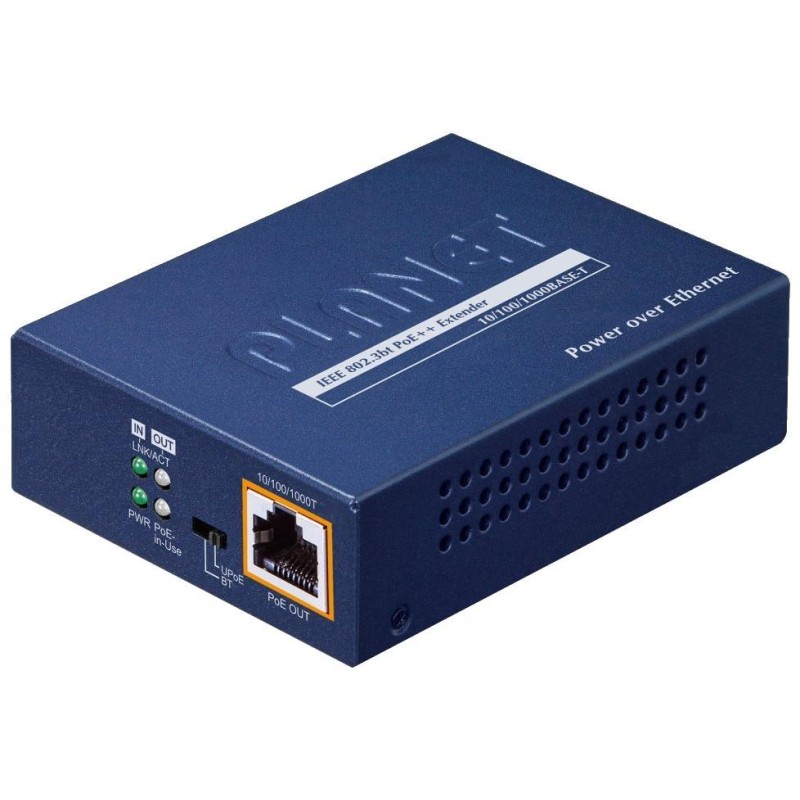

PLANET POE-E301
A simple extender that extends the transmission distance of Gigabit Ethernet and IEEE 802.3bt/at/af PoE power supply to a maximum of 400 m (when daisy-chaining 3 units).
1× input PoE++ port (95 W), 1× output PoE++ port with a total load capacity of up to 65 W , ESD+EFT protection, metal design.
Solution for extending an Ethernet segment including increasing the PoE (power over Ethernet) power supply range. This is a simple device that allows you to extend the maximum length of an Ethernet segment.
The extender application is ideal for use in places where IP cameras or wireless access points are used at longer connection distances. In terms of price, this is a cheap extension of the possibility of installing powered devices in places further away from the central switch or rack. The use consists of simply inserting the extender on a broken line.
BASIC SPECIFICATIONS
Physical properties:
Ports: 2x RJ-45 10/100/1000Base-T: 1x data port + power input, 1x data port + power output
Throughput: 1 Gbps bus, operational 14.88 Mpps (64B)
Transmission support: JumboFrame 9KB
Design: Desktop
Power supply: PoE++ 802.3bt RJ-45 with voltage 52–56 V DC or PoE 802.3af RJ-45 with voltage 44–56 V DC, total power consumption up to 60 W
Protection: ESD up to 2 kV, EFT up to 2 kV
Operating temperature: 10 to 60 °C
Dimensions: 94 × 70 × 26 mm
Weight: 258g
PoE function:
Total power output: 65 W, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of injectors: 1× up to 95 W PoE++ input, 1× up to 65 W PoE output (802.3af/at/bt)
Power supply type: End-span, Mid-span
Advanced features: automatic detection of powered device
Ethernet segment extension + PoE
