PLANET WBS-900AC

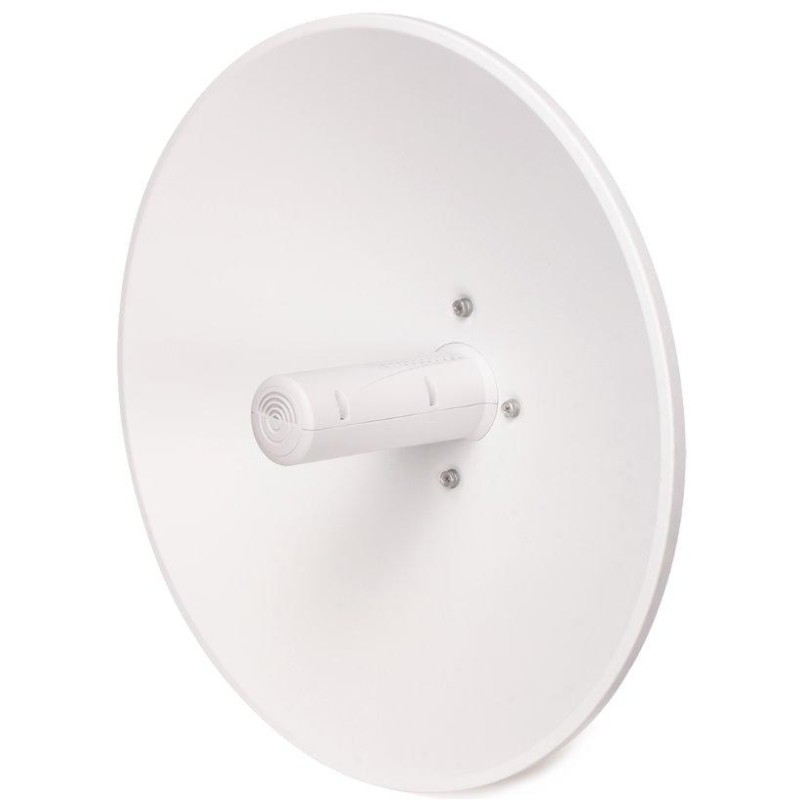

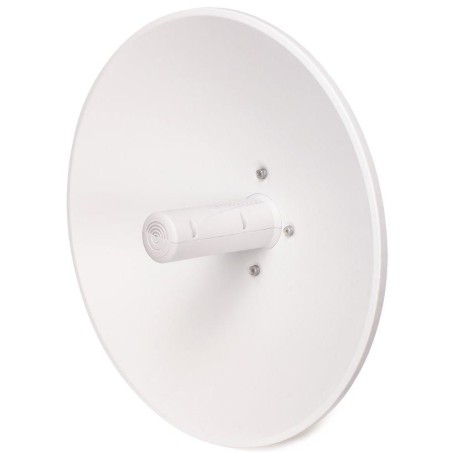

Outdoor CPE unit specially designed for outdoor long-distance wireless connections (Long range - range up to 15 km) . It has a parabolic antenna with dual polarization and a gain of 25 dBi for stable reception.
The access point is based on 5GHz radio technology of the 802.11a/n/ac standard with support for MU-MIMO Wave 2. Thanks to the 2T2R architecture and Qualcomm chipset, it achieves transfer speeds of up to 900 Mbps . In addition, it is compatible with TDMA wireless technology and supports PtP, PtMP and AP modes .
There are also two RJ-45 ports with a speed of 10/100/1000 Mbps , one of which is equipped with PoE+ technology of the 802.3at standard , through which the unit can be effectively powered.
Multiple operating modes: AP (automatic WDS), AP (TDMA), Station (WDS/TDMA) and Station (ARPNAT) . It also supports ATPC function to reduce mutual interference between CPE devices.
Easy to install and, thanks to IP65 certification, resistant to adverse environmental influences.
The package includes a PoE adapter, power cable and pole mount.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard and transmission support: IEEE 802.11a/n/ac/ac-Wave2 with transmission speed up to 900 Mbps
Frequency band: 5150–5850 MHz
Number of antennas and their power: 25dBi parabolic antenna, dual polarized, range up to 15 km
Transmitting power: 25 dBm
Transmission power control: yes
Interface: 2× 10/100/1000Base-TX, RJ-45 Ethernet (LAN + PoE)
Spanning Tree Protocol support: no
Wireless encryption: WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1Q tagged VLAN over WDS/TDMA
Wireless modes: AP (automatic WDS), AP (TDMA), Station (WDS/TDMA) and Station (ARPNAT)
Max. connected clients: up to 128
Multiple SSID: no (max. 1)
IAPP: no
Integrated DHCP server: yes
Client isolation support: yes
MAC address filtering: yes
Management: yes, remote management via HTTPS, backable and recoverable configuration
Physical properties:
Operating temperature: -40 to +70 °C
Power supply: DC 12 V/ 1 A, passive PoE (48 V) or PoE+ 802.3at, power consumption max. 15 W
Dimensions: 466 × 466 × 260 mm
Weight: 1560g
The devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5 GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can turn off. The user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to the ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device to comply with VO-R:
- 5.2 GHz band: 5150-5250 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.3 GHz band: 5250-5350 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- band 5.4 GHz: 5450-5725 MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm)
- 5.8 GHz band: 5725-5875 MHz, max. power 25 mW with built-in antenna or antenna prescribed by the manufacturer
According to the wording of the VO, it is specified under letter g) that automatic regulation must regulate by at least -3 dB. Automatic regulation is not mandatory; if the device does not have regulation, then it is sufficient to calculate the radiated power by 3 dB lower for use.
