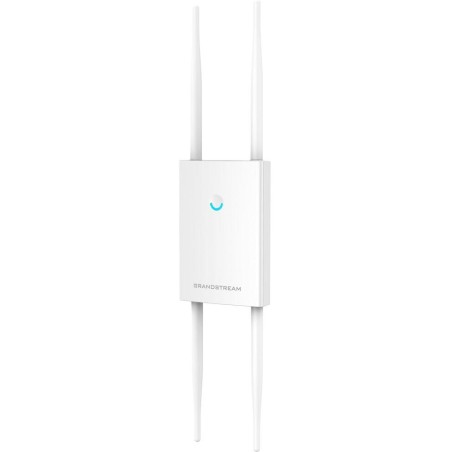

Grandstream GWN7630LR
Outdoor Wi-Fi 802.11ac Wave-2 access point designed for medium to large businesses that need to cover long distances indoors and outdoors. Four high-gain dual-band external antennas and 4x4:4 MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz ensure a strong and reliable Wi-Fi signal for more than 200 connected wireless devices . The IP66 -certified waterproof housing allows outdoor operation in temperatures from -30 °C to 60 °C . For easy installation and management, it supports GWN.Cloud - Grandstream's free cloud platform. The GWN7630LR is the ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions and offers seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, Mesh networks, and captive portals, it is an ideal solution for enterprises, multi-story buildings, warehouses, hospitals, schools, and more.
- Technology 4x4:4 MIMO for 2.4 GHz + 4x4:4 MU-MIMO for 5 GHz
- Aggregated speed 2.33 Gbps (wireless throughput), 2x Gigabit port
- Coverage up to 300 meters
- Power adaptation and automatic PoE/PoE+ detection
- Anti-hacking secure boot, critical data/control + digital signature locking, certificate security, random default password for each device
- Support for over 200 Wi-Fi client devices
- 4 detachable antennas for different installation methods
- Waterproof housing with IP66 certification (when mounted vertically)
- The built-in controller can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller
BASIC SPECIFICATIONS
Standard: IEEE 802.11a/b/g/n/ac (Wave-2)
Data transfer rate: 5 GHz - 1733 Mbit/s, 2.4 GHz - 600 Mbit/s
Antenna: 4x 2-band detachable antenna (3.5 dBi for 2.4 GHz, 3.5 dBi for 5 GHz)
Ports: 2x GbE RJ-45
Frequency: 2.4GHz, 5GHz
Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking boot, digital signature/certificate management, random default password
PoE support: yes, PoE/PoE+ (802.3af/at)
Dimensions: 533.1 x 115 x 40 mm
