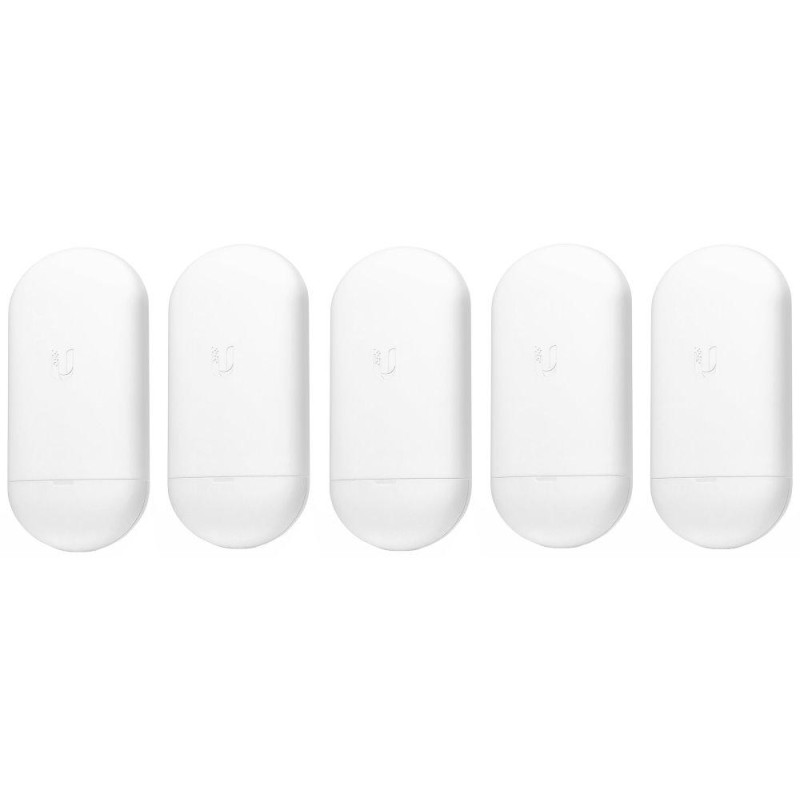

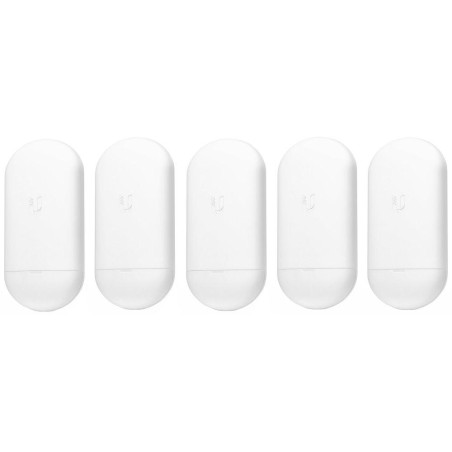

Ubiquiti NanoStation 5 AC Loco 5 pcs
Set of 5. NanoStation AC Loco outdoor unit with a revolutionary price/performance ratio, in a new design and with 802.11ac support. Thanks to this, it achieves a throughput of 450+ Mbps. Ideal for client units or Point-to-Point connections. Upgrade your network with minimal cost!
PoE injectors are not included in the package!
The NanoStation AC Loco is an outdoor unit with integrated 13 dBi (5 GHz) with horizontal and vertical polarization (MIMO 2x2). For high data rates, the unit uses 256QAM modulation and TDMA AirMAX protocol to achieve low latency .
NanoStation AC Loco is a second generation airMAX AC device that supports wireless access to the unit and the ability to set up in the UNMS application for mobile devices . The UNMS application ( Android , iOS ) also helps with the alignment of the connection and significantly speeds up its installation.
The airOS 8 web interface is intuitive and displays constellation diagrams and real-time SNR. The unit supports AP/client modes in Point-to-MultiPoint or Point-to-Point networks, and router or bridge modes.
NanoStation AC Loco, like every device in the airMAX AC series, has a dedicated radio for continuous spectral analysis of the 5 GHz band.
The NanoStation AC Loco has improved surge protection that protects the device against electrostatic discharge.
BASIC SPECIFICATIONS
CPU frequency: 560 MHz
RAM memory: 64 MB
Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna: 13 dBi internal
Dimensions: 179 x 77.5 x 59.1 mm
Weight: 180g
Important notice:
The airOS system is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by weather radars, i.e. 5630 and 5645 MHz.
