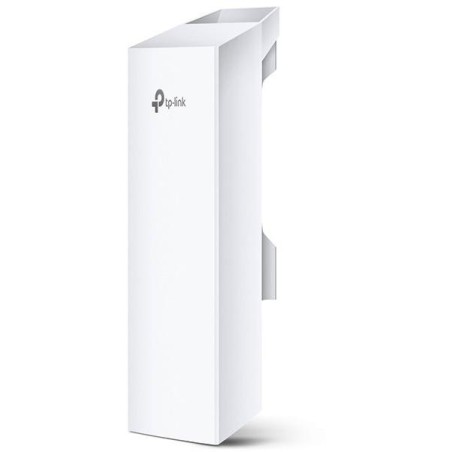

TP-Link CPE210
The outdoor CPE device is designed for an economical outdoor wireless network solution. With a centralized management system, it is ideal for point-to-point, point-to-multipoint and outdoor wireless network coverage.
Professional performance coupled with a user-friendly design makes the CPE210 an ideal choice for both work and home use.
The device is weatherproof, includes 15 KV ESD protection and lightning protection (6000 V). The package also includes a 24 V/1 A PoE adapter, mounting straps and a power cable for the adapter.
The passive PoE adapter supports Power over Ethernet up to 60 meters and allows remote device reset.
Hardware for business solutions
With Qualcomm Atheros enterprise-grade chips, high-gain antennas and high-quality materials, a specially designed housing and PoE power supply, the CPE210 is designed primarily for outdoor use and can operate flawlessly in almost any weather, with an operating temperature range of -30°C to +70°C.
Advanced antenna system
The built-in high-gain dual polarized antenna with special metal reflection ensures higher gain and lower interference.
TP-LINK MAXtream TDMA technology
With the ever-increasing network coverage, the mutual interference and collision of wireless networks between CPE devices and base stations will be so great that the actual network throughput will decrease, which will be very negatively felt by end users. To mitigate these negative effects, the CPE510 uses MAXtream TDMA technology.
Pharos Management – Centralized Management System
The CPE210 also comes with centralized management software that helps users easily manage all devices on their network from a single computer - Pharos Management. Functions such as device discovery, status monitoring, firmware updates, and network maintenance can be managed using Pharos Management.
PharOS
The user-friendly web management system allows experts to use more specific configurations.
BASIC SPECIFICATIONS
Supported standards: IEEE 802.11b/g/n
Frequency range: 2400–2483 GHz
Gain: 9 dBi
Memory: 64MB DDR2 RAM, 8MB Flash
PoE: yes, passive PoE
Dimensions: 224 × 79 × 60 mm
