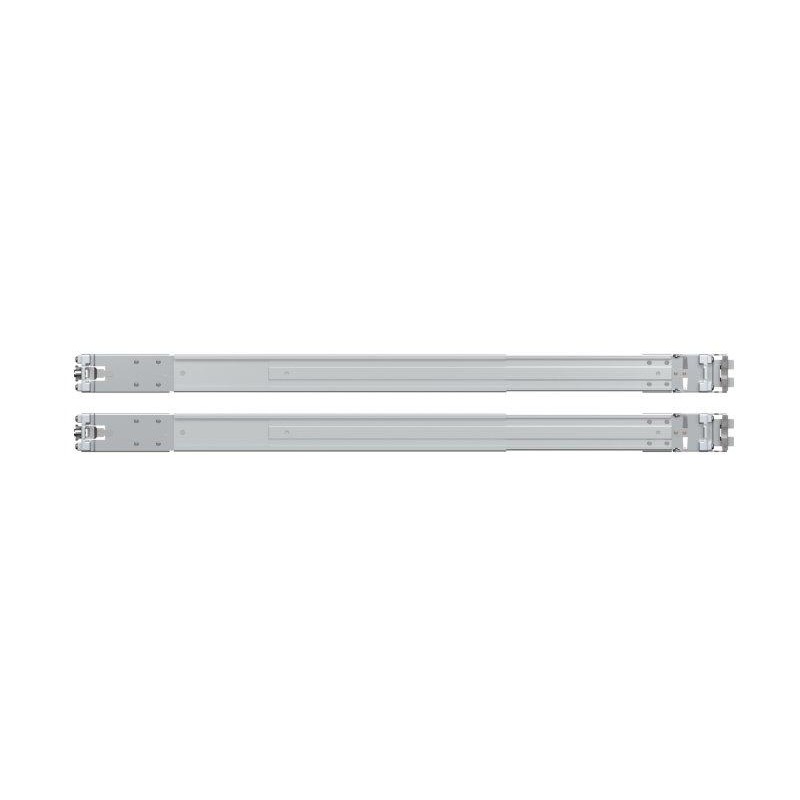

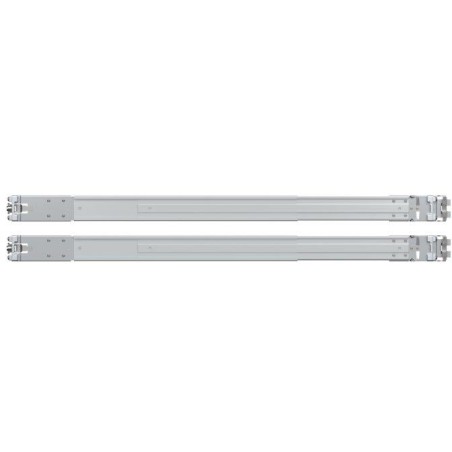

Synology RKS-02 Sliding Rail Kit for RackStation

Synology RKS-02

The sliding rail kit allows easy access to Synology rack servers for maintenance purposes.

Installation requirements

•

• The width of the wall-mounting post must be equal to or greater than 450 mm

• The panel width must be equal to or greater than 480 mm

• Cabinet mounting depth: 610 mm to 890 mm

• Support for cabinet mounting holes:


  •

  • Square hole: at least 9.5 mm × 9.5 mm

  • Circular hole: at least 7.1 mm


BASIC SPECIFICATIONS

Compatibility:

Synology FS6400, FS3600, FS3400, FS3017, FS2017

Synology SA3600, SA3400, SA3200D

Synology UC3200

Synology RX1222sas

Synology RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421

Synology RS820RP+, RS820+

Synology RS1619xs+, RS1219+, RS819, RXD1219sas

Synology RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418

Synology RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217

Synology RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas

Synology RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415

Synology RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214

Synology RS10613xs+, RS3413xs+, RX1213sas

Synology RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812

Synology RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211

Synology RS810RP+, RS810+, RX410

Synology RS409RP+, RS409+, RS409, RX4
