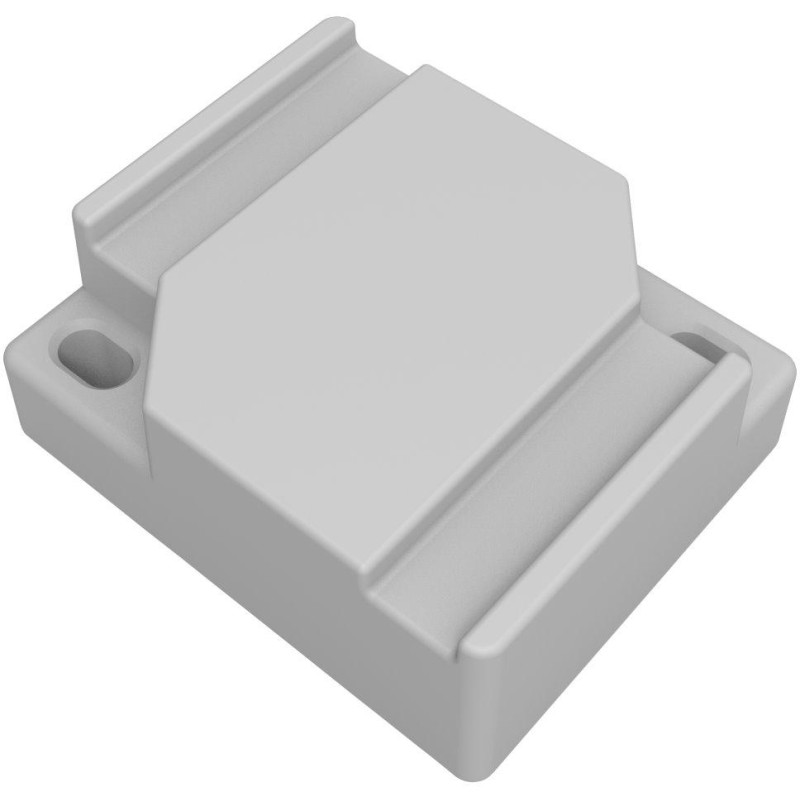

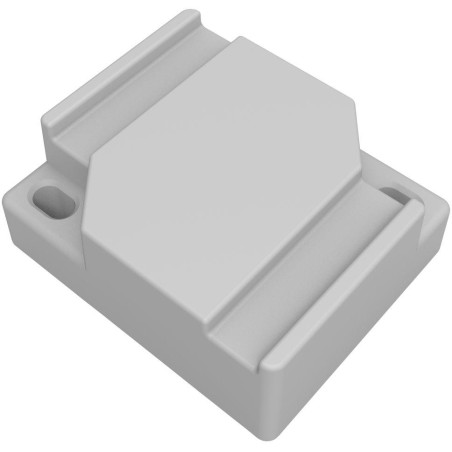

MikroTik TG-BT5-OUT tag, Bluetooth, KNOT compatible, outdoor

MikroTik TG-BT5-OUT

Rugged (industrial - IP69k) Bluetooth locator (tag) for MikroTik KNOT or other IoT devices and object tracking + telemetry (acceleration, tilt and battery level). Once activated, the tag will transmit iBeacon, Eddystone or MikroTik packets. These packets contain the MAC address used for identification and telemetry data.

The gateway then sends data to a remote server using MQTT or HTTP protocols. By default, packets are sent once every 5 seconds, but you can change this value to your liking (e.g. 1 second). The built-in accelerometers can not only detect acceleration (motion), but can also record whether the device has fallen or tilted (free fall detection).

•

• BLE (Bluetooth Low Energy) 5.2 with Silabs BG22 technology

• iBeacon, Eddystone and MikroTik telemetry

• Optional AES encryption

• Built-in long-lasting battery

• Activation by magnet

• Built-in accelerometer

• Built-in temperature sensor

• Status monitoring and logging


Later, the "Beacon manager" application will be available for configuration (packet type, accelerometer parameters (power mode, triggers, data transfer rate)) and firmware update.

BASIC SPECIFICATIONS

Interface: Bluetooth 5.2 (Silabs BG22)

Antenna integrated, 360°, gain 1.5 dBi

Sensors: accelerometer, temperature sensor

Battery 550 mAh, estimated lifespan 5-15 years (MikroTik format, update interval 1 or 5 s)

NFC with encoded serial number: yes

Protection level: IP69k

Dimensions: 38 x 32 x 16 mm
