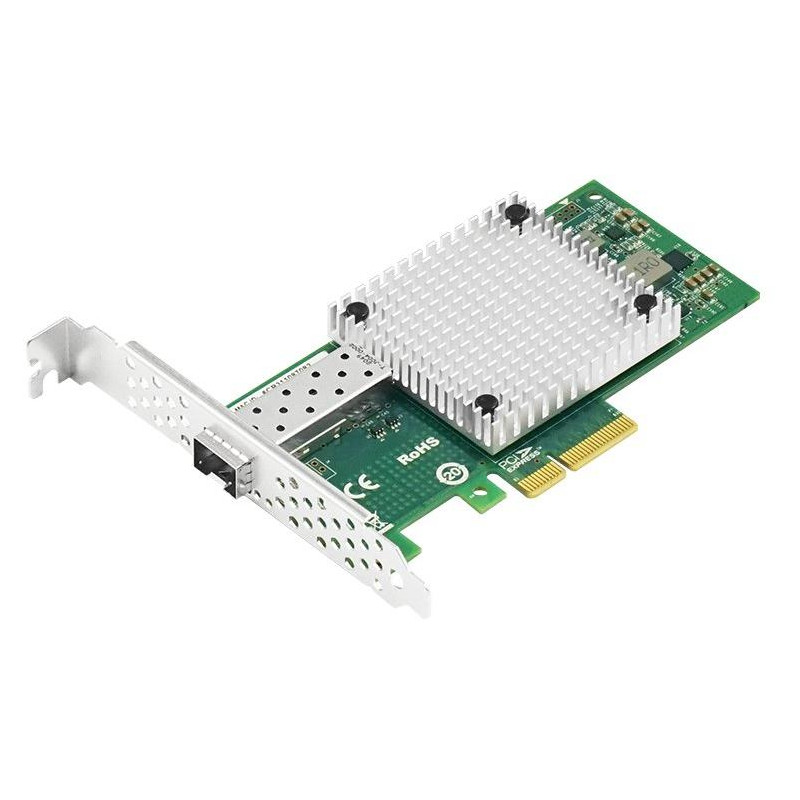

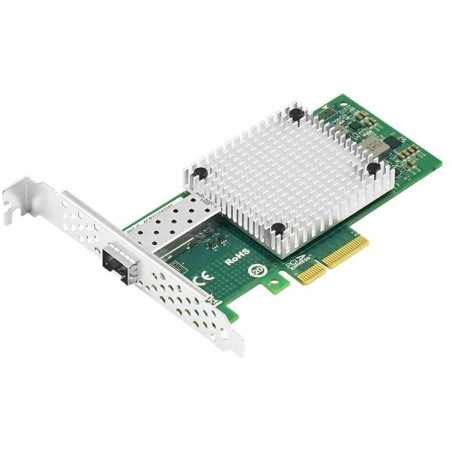

XtendLan PCI-E network card, 1x 10Gbps SFP+, Intel 82599EN, PCI-E x4

Powerful network adapter with 10G optical interface based on the Intel 82599 controller for professional server applications.

The XL-ENW-1016 is a single-channel network adapter with an optical 10G Ethernet interface that uses the powerful Intel 82599 controller. The card is designed for high-speed network communication in data centers and server environments, where it provides top performance and reliability.

By implementing Intel Virtualization Technology (VT-c) at the network layer, it significantly improves overall system performance in a virtualized server environment. The technology includes hardware optimizations such as Virtual Machine Device Queue (VMDq) , which reduces CPU load by moving data sorting from the virtual monitor (VMM) to the network controller.

BASIC SPECIFICATIONS

Controller: Intel 82599

Interface: PCIe 2.0 (5.0GT/s) x4, compatible with x8, x16

Connector: 1× SFP+

Transmission speed: 10,000 Mbps

Supported protocols: IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Full Duplex, IEEE 802.1Q VLAN, IEEE 802.3AD, IEEE 1588, IEEE 802.3az (EEE)

Advanced features: iSCSI, FCoE, PXE, DPDK, Jumbo Frames, UEFI

Operating temperature: 0 °C to +55 °C

Dimensions: 133.1 × 120 × 21 mm

Consumption: 4.8 W

LED indicators: yes
