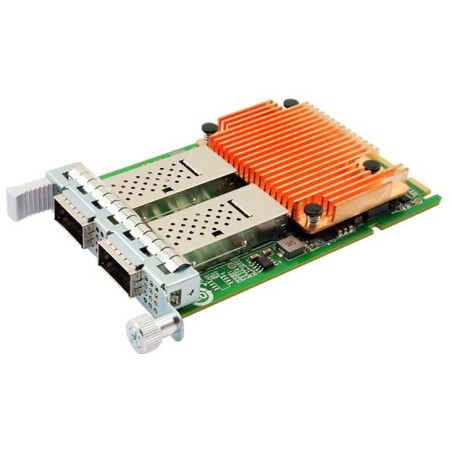

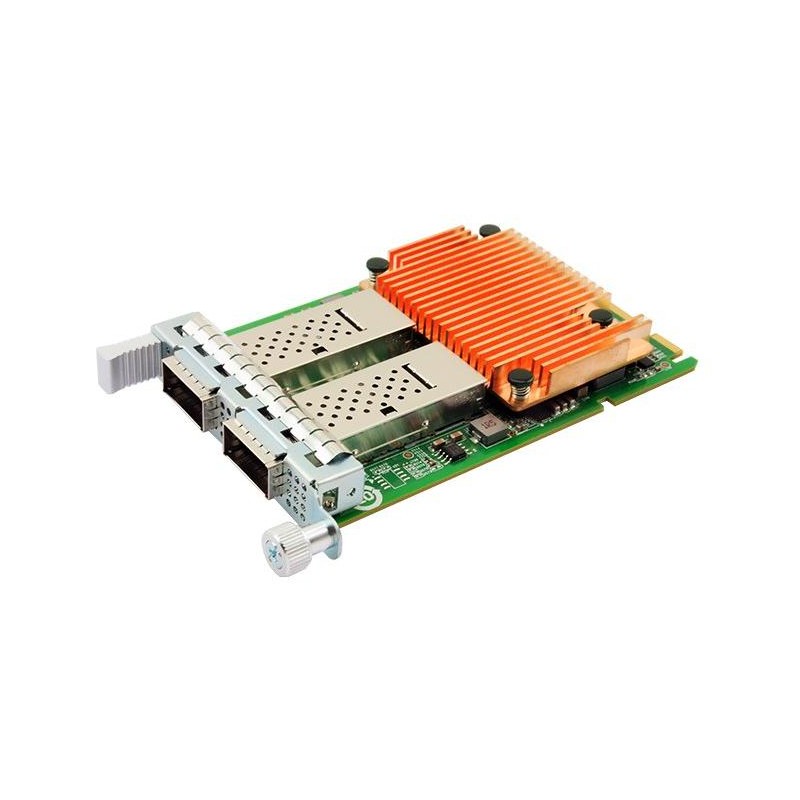

XtendLan XL-ENW-OCP-9016M
2-port 100G Mezzanine PCI Express x8 (OCP 3.0) network card . Thanks to its high throughput and 100G interface, it is suitable for data centers, virtualization and cloud applications, data storage , etc.
100Gbit network cards - building extra powerful systems
This network card provides fault tolerance and redundancy in a group through multiple port bundles simultaneously to guarantee network performance and expand network bandwidth. It enables real-time auto-detection and routing of traffic from failed ports to other members of the group to continue operation for uninterrupted communication.
- Mezzanine card, IEEE P1386.1 standard, intended for servers in data centers, etc.
- 2-port 100G Mezzanine PCI Express network card, OCP 3.0, 2x QSFP28 Ethernet, Intel E810 controller
- Designed to work in multiprocessor systems
- OCP 3.0 (Open Compute Project) - open (freely available and non-proprietary) form and assembly for servers in data centers
- Support for PXE/UEFI, DPDK, Jumbo Frames, RDMA (RoCE v2, iWARP), network virtualization (SR-IOV, VxLAN, GENEVE, GRE)
- Does not support FCoE and iSCSI functions
The Open Compute Project (OCP) is an organization that shares data center product designs and best practices among companies such as ARM, Meta, IBM, Wiwynn, Intel, Nokia, Google, Microsoft, Seagate Technology, Dell, Rackspace, Hewlett Packard Enterprise, NVIDIA, Cisco, Goldman Sachs, Fidelity, Lenovo, and Alibaba Group.
A PCI Mezzanine Card, or PMC, is a printed circuit board manufactured according to the IEEE P1386.1 standard. This standard combines the features of the PCI bus with the mechanical dimensions of the Common Mezzanine Card, or CMC, format (IEEE 1386 standard).
Protocols:
802.3bj - 100G Base Ethernet
802.3x - Full Duplex and Flow Control
802.3az - Energy Efficient Ethernet (EEE)
802.3as
802.1q - VLANs
802.1Qaz
802.1Qbb
802.1x
802.1bd
1588 v1 & v2
BASIC SPECIFICATIONS
Interface: PCI-E x8 (OCP 3.0)
Chipset: Intel E810
Ports: 2x QSFP28
Data transfer rate: 100 Gbps
Power consumption: 19.2 W (DAC); 27.1 W (optical)
Working temperature: 0 to +60 °C
Dimensions: 115 x 76 mm
Supported environments and systems:
Windows Server 2016 R2, 2019 R2, 2022 R2
Linux SLES 12.x or later
CentOS/RHEL 7.x or later
Ubuntu 16.x or later
FreeBSD 11.x/12.x or later
Linux Stable Kernel version 3.10.x/4.x or later
