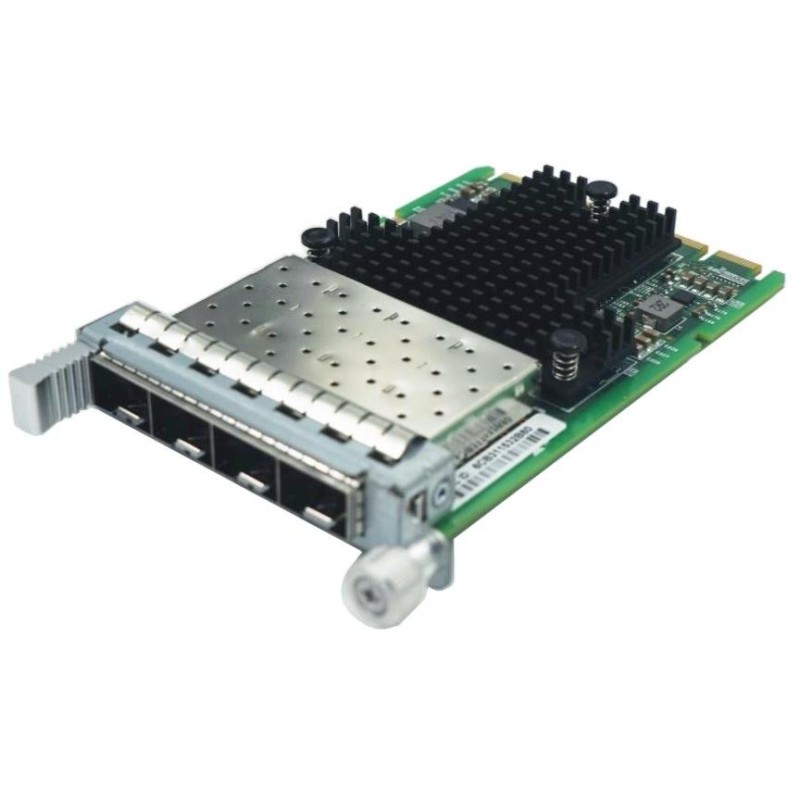

XtendLan XL-ENW-OCP-9014M
4-port 10G Mezzanine network card PCI Express v3.0 x8 (OCP 3.0) . Thanks to its high throughput and 10G interface, it is suitable for data centers, virtualization and cloud applications, data storage , etc.
This network card provides fault tolerance and redundancy in the group through multiple port bundles simultaneously to guarantee network performance and expand network bandwidth. It enables real-time auto-detection and routing of traffic from failed ports to other members of the group to continue operation for uninterrupted communication. In addition to stateless uninstallation, this adaptive card can also distribute network traffic to the processor core, improving network throughput.
- Mezzanine card, IEEE P1386.1 standard, intended for servers in data centers, etc.
- 4-port 10G Mezzanine network card PCI Express v3.0, OCP 3.0, 4x SFP+ Ethernet, Intel X710 controller
- Designed to work in multiprocessor systems
- OCP 3.0 (Open Compute Project) - open (freely available and non-proprietary) form and assembly for servers in data centers
- Support Jumbo Frames, DPDK, PXE
- Does not support WoL, FCoE, iSCSI functions
The Open Compute Project (OCP) is an organization that shares data center product designs and best practices among companies such as ARM, Meta, IBM, Wiwynn, Intel, Nokia, Google, Microsoft, Seagate Technology, Dell, Rackspace, Hewlett Packard Enterprise, NVIDIA, Cisco, Goldman Sachs, Fidelity, Lenovo, and Alibaba Group.
A PCI Mezzanine Card, or PMC, is a printed circuit board manufactured according to the IEEE P1386.1 standard. This standard combines the features of the PCI bus with the mechanical dimensions of the Common Mezzanine Card, or CMC, format (IEEE 1386 standard).
Protocols:
802.3ae - 10Gigabit Ethernet over optics
802.3x - Full Duplex and Flow Control
802.1as
802.1q - VLANs
802.3ad
1588
802.3az - Energy Efficient Ethernet (EEE)
BASIC SPECIFICATIONS
Interface: PCI-E x8 v3.0 (OCP 3.0)
Chipset: Intel X710
Ports: 4x SFP+
Data transfer rate: 10 Gbps
Power consumption: approx. 7.4 W
Operating temperature: 0 to +55 °C
Dimensions: 115 x 76 mm
Supported environments and systems:
Windows 7/8/8.1/10
Windows Server 2003 R2, 2008 R2, 2012 R2, 2016 R2, 2019 R2
Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later
CentOS/RHEL 6.x/7.x or later
Ubuntu 14.x/15.x/16.x or later
VMware ESX/ESXi 4.x/5.x/6.x or later
