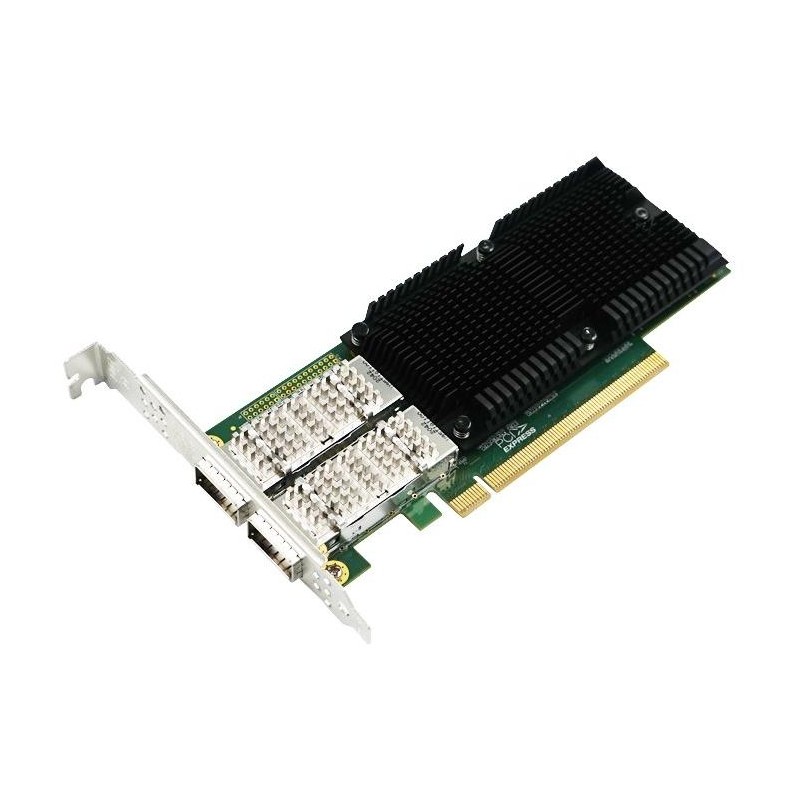

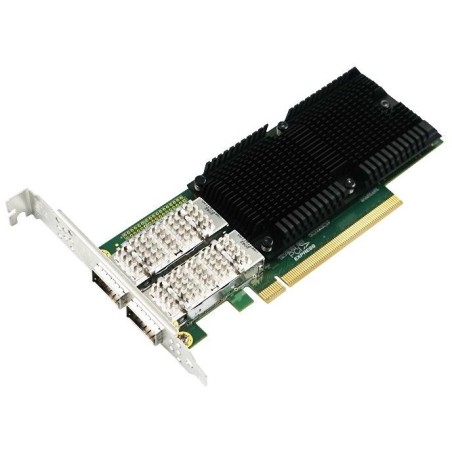

XtendLan PCI-E network card, 2x 100Gbps QSFP28, Intel E810, PCI-E x16

XtendLan XL-ENW-9921

2-port 100G PCI Express v4.0 x16 network card . Thanks to its high throughput and 100G interface, it is suitable for data centers, cloud applications, data storage , etc.

100Gbit network cards - building extra powerful systems

Hardware acceleration for data packet processing, application queue technology (NVMe Fabric TCP support), selective support for RDMA, iWARP and RoCE v2 features, backward compatible with PCIe v3.0 and v2.0, scalable ADQ technology for increased performance and critical processes, ADQ uses an optimized application thread path to data, information and application-specific rate limiting functions.

•

• 2-port 100G PCI Express v4.0 x16 (PCIe) network card, 2x QSFP28 Ethernet (Intel E810)

• iWARP and RoCE v2 Remote Direct Memory Access (RDMA)

• Intel Ethernet Adaptive Virtual Function (Intel Ethernet AVF)

• Advanced server virtualization (256 VFs, 768 VSIs)

• IEEE 1588 Precision Time Protocol (v1 and v2) with time stamping on the packet

• Support for iSCSI, Jumbo Frames, DPDK, PXE, RDMA (iWARP, RoCE v2), network virtualization (SR-IOV, VxLAN, GENEVE, GRE)

• Does not support WoL and FCoE features

• Half and full height blanking plugs


Protocols:

802.3bj 100G Base Ethernet

802.3x Full Duplex and flow control

802.3az Energy Efficient Ethernet (EEE)

802.3AS

802.1Q VLANs

802.1Qaz

802.1Qbb

802.1x

802.1bd

1588 v1 & v2

BASIC SPECIFICATIONS

Interface: PCI-E 4.0 x16 (backward compatible with v3.0 and v2.0)

Chipset: Intel E810

Ports: 2x QSFP28

Data transfer rate: 100 Gbps (10/25/50/100 GbE)

Power consumption: 15 W (max. 27.1 W)

Working temperature: 0 to +60 °C

Dimensions: 171.5 x 120 x 21 mm

Supported environments and systems:

Windows Server 2016 R2, 2019 R2, 2022 R2

Linux Stable Kernel version 4.x/5.x or later

CentOS/RHEL 7.x or later

Ubuntu 16.x or later

VMware ESX/ESXi 5.x/6.x or later
