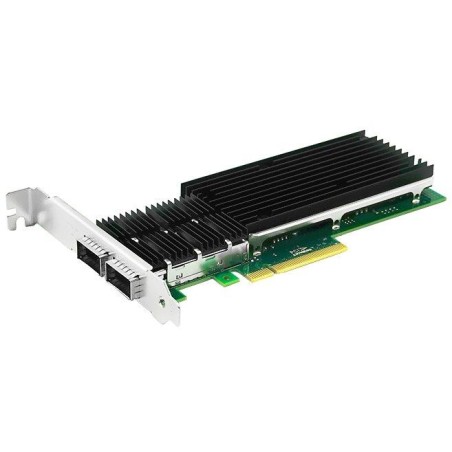

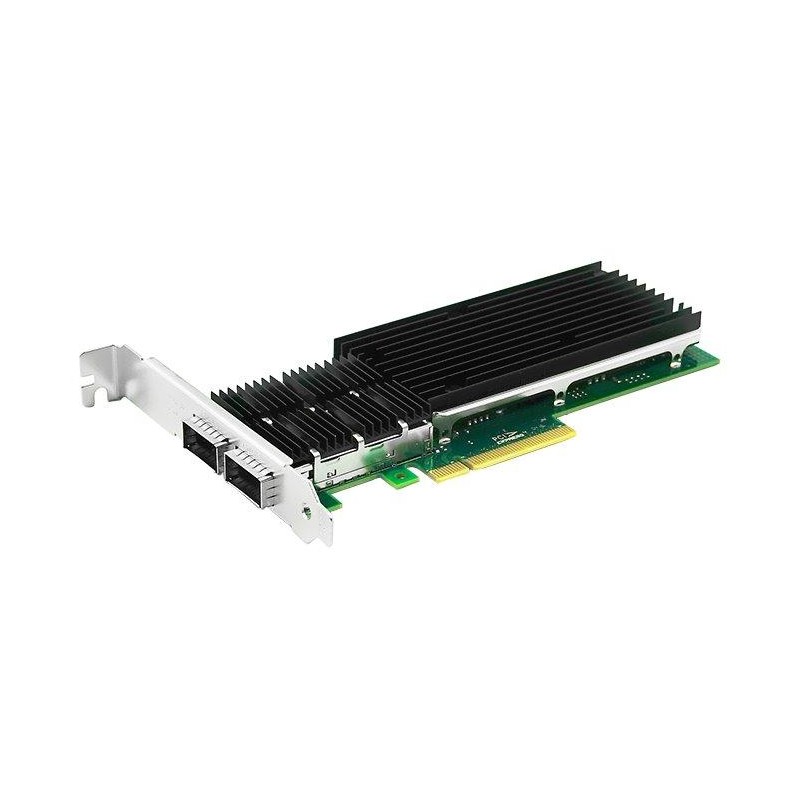

XtendLan XL-ENW-9913
2-port 40G PCI Express v3.0 x8 network card . Thanks to its high throughput and 40G interface, it is suitable for data centers, cloud applications, data storage , etc.
This adapter is primarily used in IDC server rooms, high-performance servers, and high-end devices. It enables easy integration into any server with a PCI Express x8 interface. In addition to managing the MAC and PHY functions of the Ethernet layer, the controller manages the operation of PCI Express data tables at its switching (link) and physical/logical layers. Using hardware acceleration, the controller offloads tasks such as TCP/UDP/IP checksum calculations and TCP parsing from the host. The adapter supports Intel PRO Smart Install and the new Intel PROSet for Microsoft Device Manager, which simplifies installation and management.
- 2-port 40Gigabit network adapter
- PCI Express (PCIe) 3.0, 8.0 GT/s, x8 lanes (compatible with x16)
- QSFP+ connection
- Network virtualization
- DCB/DCB-X support
- Message Signal Interruption (MSI-X)
- Receive Side Scaling (RSS)
- Large Send Offload (LSO)
- Support for PXE, iSCSI, FCoE, DPDK, VMDq, Jumbo Frames, RSS, PCI-SIG*SR-IOV, network virtualization (VXLAN, NVGRE, Geneve, Network Service Headers (NSH), VEPA, VEB)
- Does not support WoL function
- Half and full height blanking plugs
Protocols:
802.3ba 40Gigabit Ethernet
802.3x Full Duplex and flow control
802.3BD
802.1AS
802.1Q VLANs
802.3AD
802.3az - Energy Efficient Ethernet (EEE)
802.3ap
BASIC SPECIFICATIONS
Interface: PCI-E 3.0 x8 (backward compatible with v2.1 and v2.0)
Chipset: Intel XL710
Ports: 2x QSFP+ (Base-SR, Base-LR, Base-Cu)
Data transfer rate: 40 Gbps
Power consumption: 5.6 W
Operating temperature: 0 to +55 °C
Dimensions: 165 x 120 x 21 mm
Supported environments and systems:
Windows 7/8/8.1/10
Windows Server 2008 R2, 2012 R2, 2016 R2, 2019, 2019 R2
Linux Stable Kernel version 3.x/4.x or later
Linux CentOS/RHEL 6.5/7.x or later
Ubuntu 14.x/15.x/16.x or later
VMware ESX/ESXi 4.x/5.x/6.x or later
