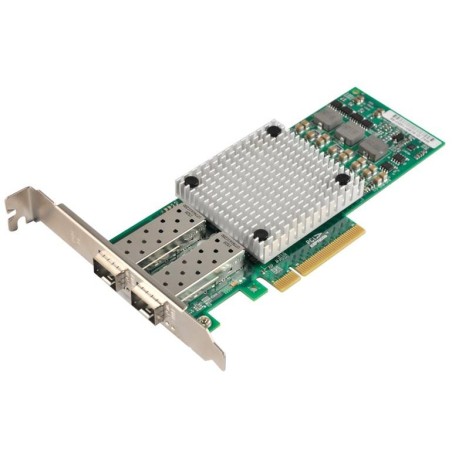

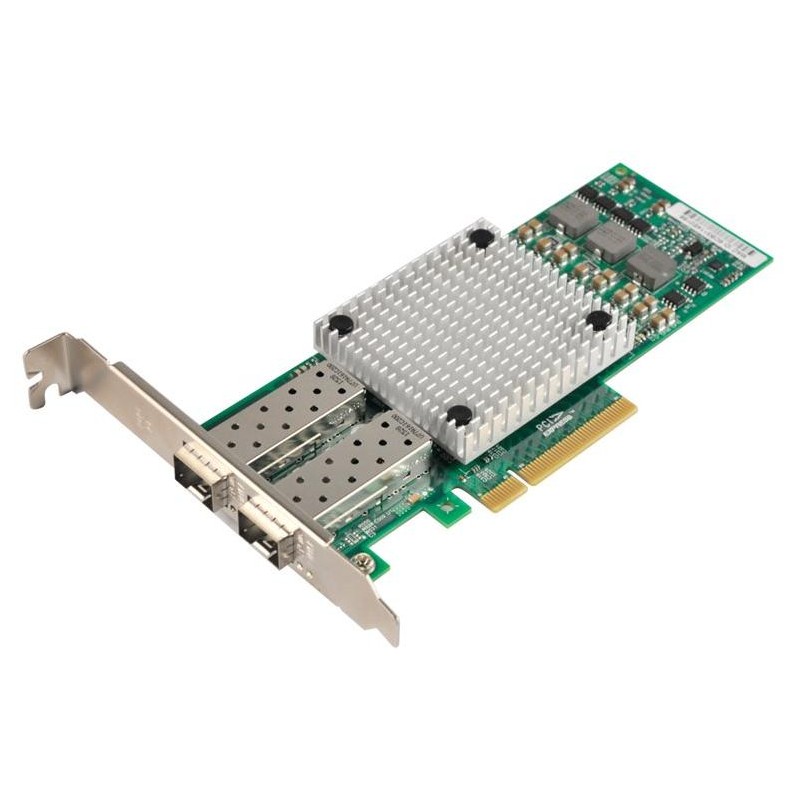

XtendLan PCI-E network card, 2x 10Gbps SFP+, BCM57810S, PCI-E x8, works with Mikrotik, low profile

XtendLan XL-ENW-9842

10Gigabit network adapter with two SFP+ slots for module installation, PCI Express x8. Supports SR-IOV, RSS, PXE, VMQ, PTP IEEE1588. Through drivers, support for VMware NetQueue, Windows Hyper-V VMQ. Also supported in Mikrotik. Supplied with a panel for low profile and standard mounting.

10Gigabit adapter installable into PCI Express x8 allowing immediate implementation of 10Gbps transmissions. It is used for installation in servers with a requirement for maximum availability and the ability to fully service clients on the network or the Internet. The PCI Express interface provides higher throughput compared to the original PCI bus, the technology allows you to use the full potential of 10Gigabit.

NIC network card tested within the XigmaNAS project (FreeNAS and Nas4Free), where it is directly supported as a native interface, the application does not require the installation of external drivers.

BASIC SPECIFICATIONS

Features:

•

• Can be used with e.g. XL-MTB-LR, XL-MTB-SR modules (SFP 1000BASE-X modules can also be used, e.g. XL-MGB-LX)

• Flow control support (IEEE802.3x); IEEE 802.1p CoS

• Support for Virtual LAN (VLAN) tag detection and processing (802.1Q)

• Prioritization support (802.1D, 802.1p)

• Hardware acceleration of TCP/IP protocol, TCP/UDP checksum

• 9K Jumbo Frame support

• SNMP RMON support


Interface: PCI-E 2.0 x8 (can also be installed in PCIe x16)

Chipset: Broadcom BCM57810S

Speed: 10Gbps

Ports: 2x SFP+

Power consumption: 10 to 11 W

Working temperature: 0 to +55 °C

Supported environments:

Microsoft Server 2008/ 2012/ Windows 7/ 8 32-bit and 64-bit

Linux 2.6.30 (RHEL 5.7/6.1)

VMWare from 4.1u2 and 5.0u1

Solaris 10

Mikrotik

XigmaNAS (FreeNAS, NAS4Free)
