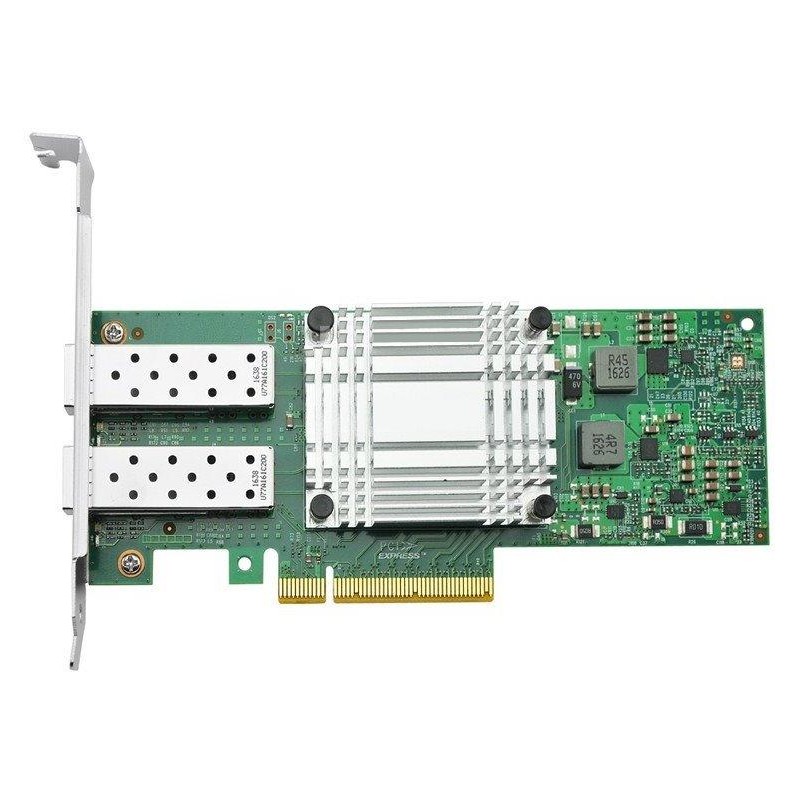

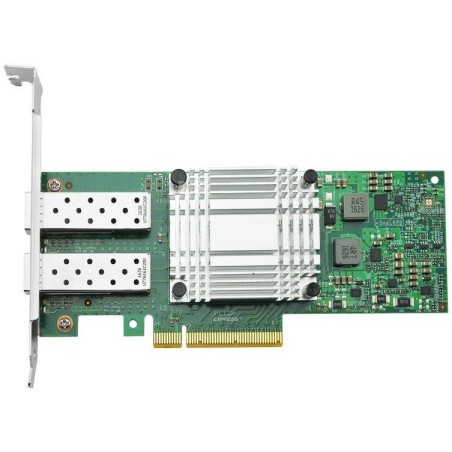

XtendLan XL-ENW-9832
10Gigabit network adapter with two SFP+ slots for module installation, PCI Express x8 v 3.0. Supports VMDq, SR-IOV, FCoE encapsulation, IEEE802.1AE, IEEE1588, DDIO. Also supported in Mikrotik OS. Does not require original Intel SFP+ modules, any can be used. Supplied with a panel for low profile and standard mounting.
10Gigabit adapter installable into PCI Express x8 v 3.0 allowing immediate implementation of 10Gbps and 40Gbps transmissions. It is used for installation in servers with a requirement for maximum availability and the ability to fully service clients on the network or the Internet. The PCI Express interface provides higher throughput compared to the original PCI bus, the technology allows you to use the full potential of 10Gigabit.
BASIC SPECIFICATIONS
Features:
- Can be used with e.g. XL-MTB-LR, XL-MTB-SR modules
- Load-balancing support for multi-CPU systems
- iSCSI support, remote boot
- VMDq support
- Fiber CHannel over Ethernet, FCoE support
- Support for Time Sync according to IEEE 1588, 802.1as
- Flow control support (IEEE802.3x); IEEE 802.1p CoS
- Support for Virtual LAN (VLAN) tag detection and processing (802.1Q)
- Prioritization support (802.1D, 802.1p)
- Hardware acceleration of TCP/IP protocol, TCP/UDP checksum
- 16K Jumbo Frame support
- SNMP RMON support
- Advanced software connection methods - Adapter fault tolerant (AFT), Siwtch fault tolerant (SFT), Adaptive load balancing (ALB)
Interface: PCI-E 3.0 x8 (can also be installed in PCIe x16)
Chipset: Intel XL710-AM2
Speed: 10Gbps
Ports: 2 x SFP+
Power consumption: 10 - 11 W
Working temperature: 0°C - 55°C
Dimensions: 148 x 68 mm
Supported environments:
Microsoft Server 2008/ 2012
Linux 2.6.32 and 3.x and higher (from RHEL 6.5, SLES 11 SP3)
FreeBSD 9
VMware ESXi 5.51
