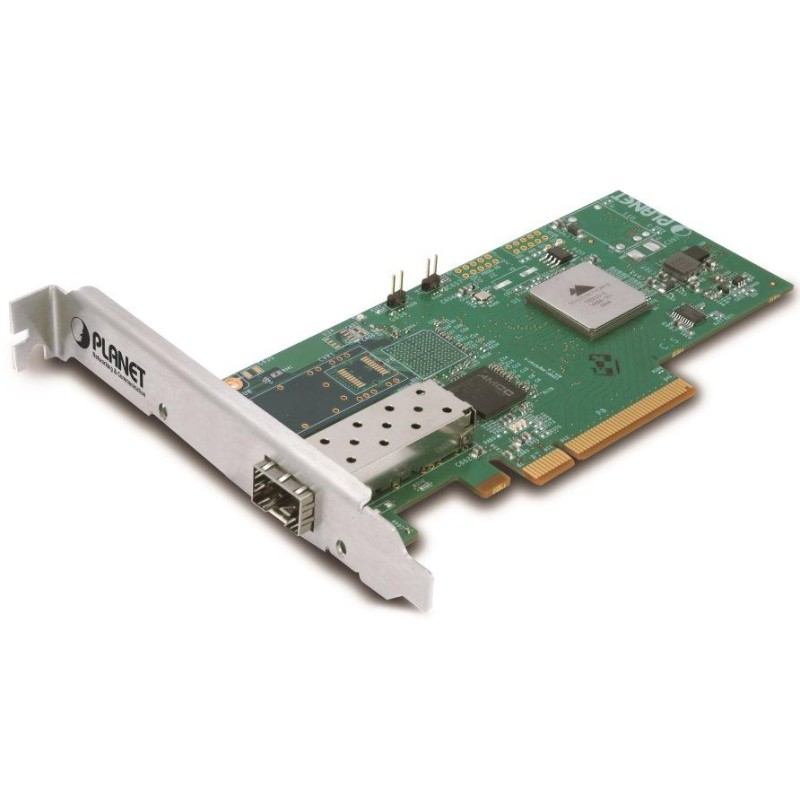

Planet ENW-9801 PCI-E network card, 1x 10Gbps SFP+, RSS

PLANET ENW-9801

10Gigabit network adapter with SFP+ slot for installing MTB-LR/SR and DWDM modules, RSS support (multi CPU), PCI Express x8.

10Gigabit adapter installable into PCI Express x8 allowing immediate implementation of 10Gbps transmissions. It is used for installation in servers with a requirement for maximum availability and the ability to fully service clients on the network or the Internet. The PCI Express interface provides higher throughput compared to the original PCI bus, the technology allows you to use the full potential of 10Gigabit.

BASIC SPECIFICATIONS

Features:

•

• Can be used with e.g. MTB-LR, MTB-SR or DWDM modules

• Flow control support (IEEE802.3x); IEEE 802.1p CoS

• Support for Virtual LAN (VLAN) tag detection and processing (802.1Q)

• Prioritization support (802.1D, 802.1p)

• Hardware acceleration of TCP/IP protocol, TCP/UDP checksum

• Support for processing traffic on multiple processors - RSS (Receive-Side Scaling)

• 3Mb internal buffer

• 9K and 16K Jumbo Frame support

• SNMP RMON support


Interface: PCI-E 2.0 x8

Chipset: Tehuti

Speed: 10GbE

Ports: 1 x SFP+

Power consumption: 4 W

Working temperature: 0°C - 60°C

Dimensions: 147 x 63.5 mm

Supported environments:

Windows Server 2003/ 2008/ XP/ Vista/ 7 32/64-bit

Linux 2.4/2.6 (Redhat Advanced Server, Fedora Core 4/5, Debian 3.1, Ubuntu 5.10, Gentoo 2005/2006)

VMware ESX
