Teltonika PR1IC970 outdoor LTE/WI-FI/GPS/BLUETOOTH antenna for RUTX11 and RUTM11 routers

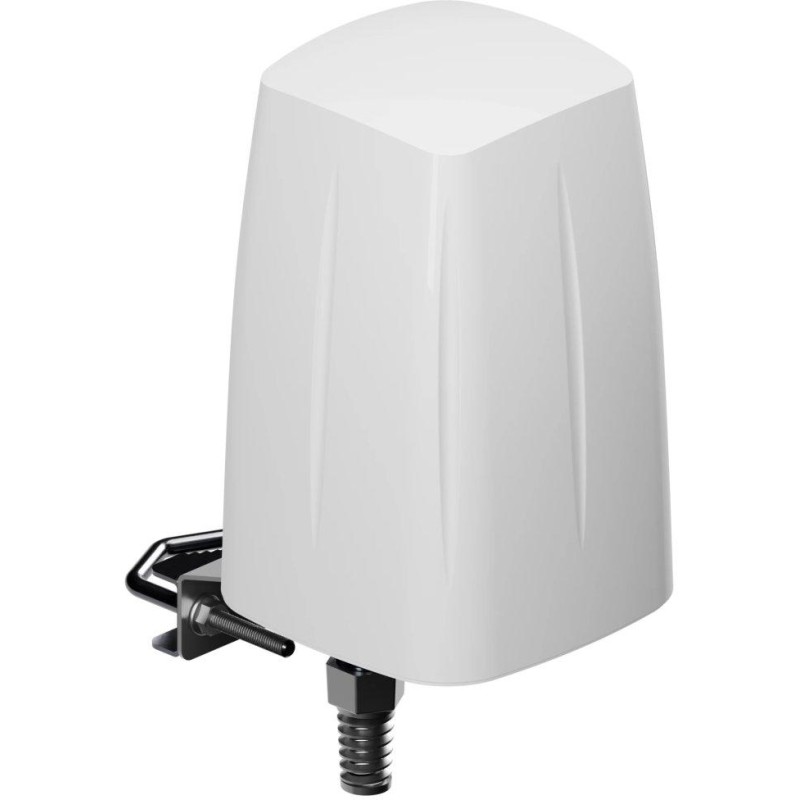

Teltonika PR1IC970

Robust outdoor multifunctional antenna designed to provide reliable wireless connectivity in harsh environments. Compatible with Teltonika RUTX11 and RUTM11 routers , it supports LTE, Wi-Fi, GNSS and Bluetooth technologies. With its omnidirectional radiation pattern and high signal gain, it is ideal for industrial applications where stability and connection quality are key. The antenna is water and dust resistant ( IP67 ) and can be mounted on a wall, ceiling or mast, providing flexibility in installation. In addition, the router can be inserted directly into the antenna body, creating a compact and protected solution ideal for demanding outdoor deployments.

BASIC SPECIFICATIONS

LTE antenna

Frequency range: 617–960 MHz, 1700–2700 MHz, 3300–4300 MHz

Polarization: vertical

Radiation pattern: omnidirectional

Gain: max. 4.5 dBi

VSWR: < 2.5

Impedance: 50 Ω

Connector: 2× SMA (M)

Bluetooth antenna

Frequency range: 2200–2700 MHz

Polarization: vertical

Gain: 2 dBi

VSWR: < 2.0

Impedance: 50 Ω

Connector: 1× RP-SMA (M)

Note: The Bluetooth antenna is not used when used with the RUTM11 router.

Wi-Fi antenna

Frequency range: 2400–2500 MHz, 4700–6000 MHz

Polarization: vertical

Radiation pattern: omnidirectional

Gain: max. 7.5 dBi

VSWR: < 2.0

Impedance: 50 Ω

Connector: 2× RP-SMA (M)

GNSS antenna

Frequency range: 1560–1610 MHz

Polarization: RHCP

Gain: 28 dBi

VSWR: < 2.0

Impedance: 50 Ω

Connector: 1× SMA (M)

Current consumption: 2.5-6.5 mA

Supply voltage: 2.5-6.5 V DC

Mechanical and environmental properties

Cable type: 5× RG316, 1× RG174

Operating temperature: -40°C to +75°C

Mounting method: wall, ceiling, pole

Protection: IP67

Weight: 1500g

Compatibility: Teltonics RUTX11 and RUTM11
