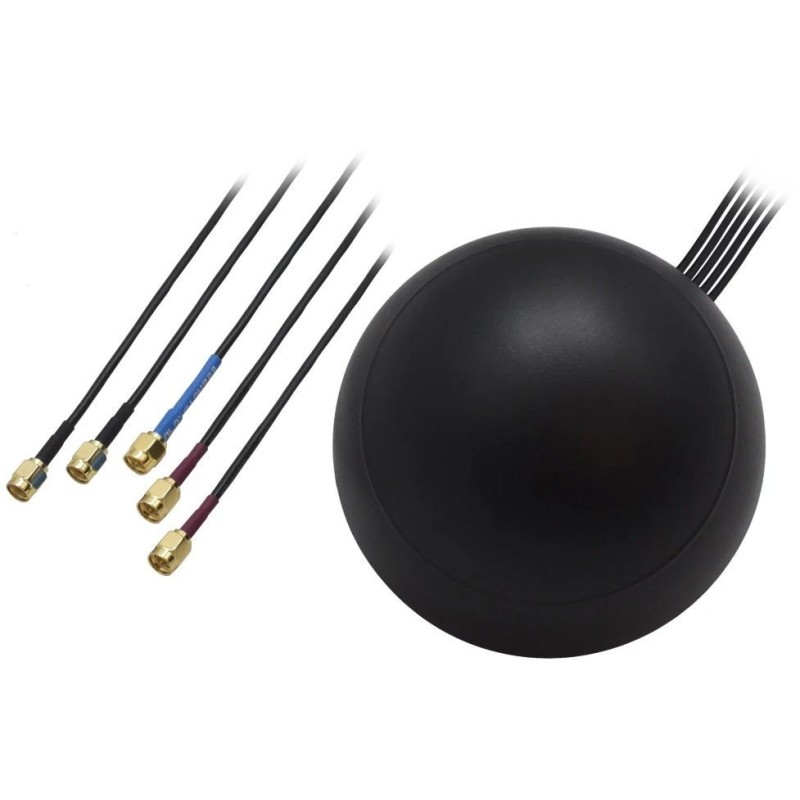

Teltonika roof COMBO antenna LTE/GPS/WIFI MIMO, SMA connectors

Teltonika 003R-00253

Rooftop combo unit consisting of three built-in antennas. The GNSS antenna with a gain of 28 dB operates in the 1575.42 - 1610 MHz band and has an SMA connector. The MIMO LTE antenna with a gain of 3 dBi operates in the 698 - 960 MHz and 1710 - 2690 MHz bands and is terminated with two SMA connectors. The last part is the MIMO Wi-Fi antenna with a gain of 2 dBi, which operates in the 2400 - 2483.5 MHz and 4900 - 5825 MHz bands and is terminated with two RP-SMA connectors. The unit has a total of five cables , each 3 meters long. The entire combo antenna is attached with a screw and is waterproof according to IP67.

BASIC SPECIFICATIONS

Polarization:

GNSS: RHCP

LTE: linear

Wi-Fi: linear

Frequency bands:

GNSS: 1575.42 x 1610 MHz

LTE: 698 - 960 MHz, 1710 - 2690 MHz

Wi-Fi: 2400 - 2483.5 MHz, 4900 - 5825 MHz

Profit:

GNSS: 28 dB

LTE: 3 dBi

Wi-Fi: 2 dBi

Connectors: 3 x SMA (M), 2 x RP SMA (M)

Dimensions: 110 x 110 x 55 mm
