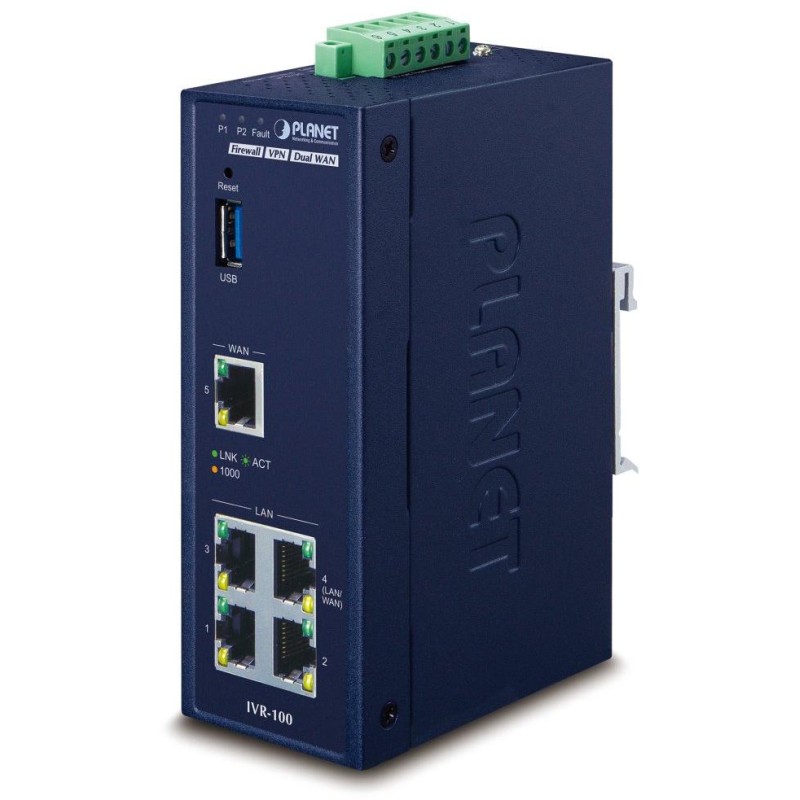

Planet IVR-100 Router/firewall VPN/VLAN/QoS, 2xWAN(SD-WAN), 3xLAN, IP30, -40 to +75°C, 9-48VDC

PLANET IVR-100 Industrial gigabit router with five RJ-45 ports for WAN/LAN/DMZ definition with easy and quick setup via web interface. A device with a professional firewall enabling multiple Internet connections with the ability to distribute the load or create a backup for connections. It is an ideal device with a firewall and SD-WAN support for medium and small companies, providing them with a redundant Internet connection, while solving applications of secure remote connection to remote networks and protection against Internet attacks, has an advanced firewall with detection of non-standard IP traffic, as well as the ability to control the transmission bandwidth using QoS rules and statistics of transmitted data. Connections between local networks or for external clients are ensured by an integrated VPN server, encryption is supported by an integrated hardware accelerator. Wall or DIN installation, metal design IP30, ESD port protection, dual power supply DC 9-48 V, operation at -40 to 75 °C, without fans. Key features: OpenVPN, SSL VPN and hybrid VPN support (IPSec/ GRE/ PPTP/ L2TP over IPSec) SD-WAN support Multisubnet LAN in conjunction with VLAN Hotspot portal for public user authentication RADIUS server/client Dual WAN Failover and load balancing SPI (Stateful Packet Inspection) firewall and content filtering DoS and DDoS attack blocking, IPv6 port forwarding, SNMP, PLANET DDNS and HTTPS Simplified security management Software-defined WAN networks (SD-WAN) remove the limitations of the MPLS link from an external provider to the headquarters for cloud applications. However, using cloud applications in traditional networks that were not built for such traffic often means connection slowdowns, outages and an overall deterioration of the user experience. Not to mention the financial cost of such lines. SD-WAN automatically monitors data traffic in the network and directs it along a route that guarantees the highest possible quality. Another great advantage of SD-WAN is centralized management. On the one hand, it minimizes the risk of configuration errors, simplifies the detection and resolution of network problems, and on the other hand, it allows you to quickly implement the necessary changes to network and security policies. Another advantage of SD-WAN is security. It combines security integrated directly into the architecture with cloud security functions - it is a modern SASE approach. This does not limit the performance of the network or applications. Possible monitoring of mobile applications CloudViewer. BASIC SPECIFICATIONS Interfaces: Ports: 3× RJ-45 Gbit LAN, 1× RJ-45 Gbit LAN/WAN, 1× RJ-45 Gbit WAN, 1× USB 3.0 (firmware upgrade/configuration backup) Management and administration: Web management (management from any browser), SNMP and Syslog support Traffic prioritization QoS: yes, including shaper of individual IP addresses IP routing and firewall: Firewall: SPI Traffic protection: DoS/DDOS protection, MAC/IP/URL filtering Protocols: IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, DHCP, SNMP (v1/v2C/v3), PPPoE, SNMP, QoS, VLAN, IGMP Overviews: connection log, overviews of received and sent data Performance: Firewall throughput: up to 900 Mbps Routing rules: 32 static, 4096 dynamic VPN: Tunnels: PPTP, L2TP, GRE, IPSec, SSL, OpenVPN Performance: 60 tunnels, throughput up to 60 Mbps Encryption: DES, 3DES, AES or AES-128/192/256-bit encryption Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 authentication algorithm Hardware accelerator for encryption Physical properties: Design: DIN rail or wall Power supply: DC 9–48 V power supply, redundant, 6-pin terminal, total power consumption up to 9 W (power supply not included) Operating temperature: -40 to +75 °C Dimensions: 135 × 87.5 × 50 mm Weight: 530 g Industrial properties: the device is drop-resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts of the device is resistant to vibrations (IEC-60068-2-6) the device is resistant to overload short-term acceleration 50g, long-term 4g, (IEC-60068-2-27) electrical safety according to CE EN-60950 EMC Electronic compatibility (EMI): ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment EMC immunity requirements (EMS): ČSN EN 55024 A1:2015 - Information technology equipment ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD ČSN EN 61000-4-3 A2:2010 - Radiated high-frequency electromagnetic field ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT ČSN EN 61000-4-5:2014 - Surge and overvoltage ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields ČSN EN 61000-4-8:2009 - Power frequency magnetic fields ČSN EN 61000-4-11:2004 - Voltage dips, short interruptions and slow voltage changes Manual Datasheet Other download
