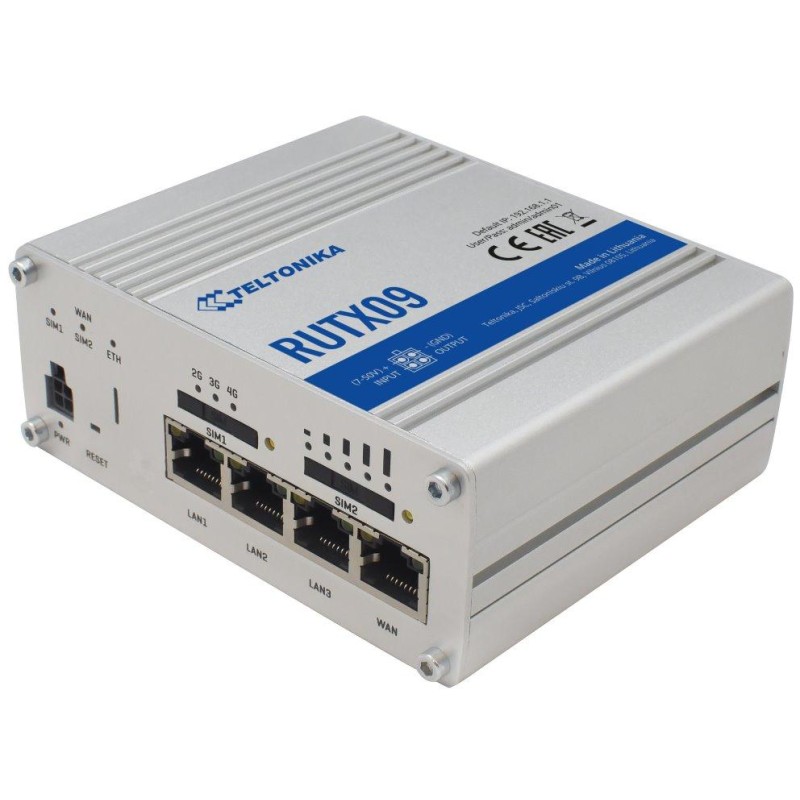

Teltonika RUTX09
Durable and powerful industrial LTE router designed for LTE/GNSS technologies. It belongs to a group of compact, cost-effective and secure industrial IoT routers that guarantee high performance in environments with a wide range of operating temperatures. It is equipped with two SIM slots and four GbE ports, LED indicators of digital inputs/outputs and status LEDs that show the level of the received signal from the mobile network. The integrated GPS receiver provides constant information about the router's position.
Advantages:
- 4G (LTE) support - Cat 6 (up to 300 Mbps) and 3G (up to 42 Mbps)
- Dual SIM with auto Failover, Backup WAN and more
- Remote access - Teltonika Remote Management System
- Quad-core ARM Cortex A7 CPU, 717 MHz
- Easy-to-use, secure RutOS operating system based on OpenWrt
- Support for VPN services
- Wide range of supply voltages for easier integration
Mobile part
- Module: 4G(LTE) cat 6 - up to 300 Mbps, 3G - up to 42 Mbps
- 2 x SIM slot (Mini SIM - 2FF)
- Status: Signal Strength (RSSI), SINR, RSRP, RSRQ, Bytes sent/received
- SMS notifications
Ethernet part
- 1 x WAN port 10/100/1000 Mbps, configurable to LAN (auto MDI/MDIX)
- 3 x LAN port 10/100/1000 Mb/s (auto MDI/MDIX)
Network part
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers (allow proper routing of VoIP packets).
- Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP
- Firewall: defines rules for communication (port forwarding, traffic rules, etc.)
- DHCP: static and dynamic IP allocation
- Network backup: backup with recovery in case of connection or power failure (VRRP)
- QoS: control by priority, source/destination, protocol or port
- DDNS: support >25 service providers, others can be configured manually
- Hotspot: internal/external Radius server, customizable landing page
Security
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Predefined firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS attack prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan protection (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and VLAN tag separation
- WEB filter: blacklist for blocking unwanted websites, whitelist for specifying allowed websites
- Access Control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN: support for multiple clients per server, 12 encryption methods
- OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec: IKEv1 and IKEv2 with 5 methodsami encryption for IPsec (DES, 3DES, AES128, AES192, AES256)
- GRE: GRE tunnel (Generic Encapsulation Protocol)
- PPTP, L2TP: client/server services can be run simultaneously
- Stunnel (planned): An encrypted network tunnel, mainly for programs that do not support SSL. It allows connecting two networks via an encrypted TCP tunnel, or securing the operation of unencrypted protocols or daemons such as IMAP, MySQL, POP, IRC, and others. It adds TLS encryption functionality to existing clients/servers without any code changes.
- DMVPN: Creating scalable IPsec VPN networks
MODBUS
- Modbus TCP slave: ID range 0-255
- Modbus TCP master: support function 01, 02, 03, 04, 05, 06, 15, 16, support 8/16/32-bit data formats
Firmware customization
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported programming languages: Busybox shell, Lua, C, C++
- Development tools: SDK package (with development environment)
GNSS
-GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
-Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
Power supply
- 4pin DC, 9-50V
- passive PoE, not compatible with 802.3af/at
- consumption less than 11 W
More detailed information can be found in the attached manual, in the documents tab or on the page wiki.teltonika-networks.com/view/RUTX09 .
The RMS system can be tried for free at https://rms.teltonika.lt/ .
BASIC SPECIFICATIONS
Processor: ARM Cortex A7, 717 MHz, 4-core
Memory: 256MB DDR3 + 256MB SPI flash
Ports: 4 x RJ-45, 1 x USB 2.0, 1 x digital input, 1 x digital output (on power connector), 2 x SIM slot (Mini SIM - 2FF), 2 x SMA (LTE), 1 x SMA (GNNS)
PoE support: yes, passive
Power supply: 9 - 50V
Dimensions: 115 x 95 x 44 mm
