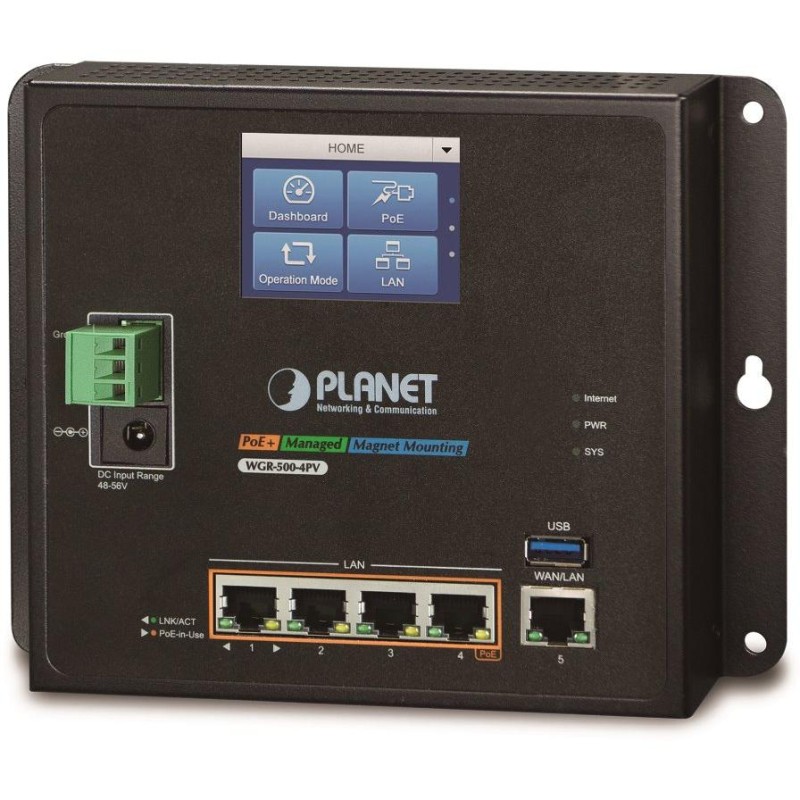

PLANET WGR-500-4PV
Gigabit router with a 2.4" touchscreen for easy management. It has 4x LAN 1000Base-T and 1x WAN 1000Base-T ports, including 4x 802.3at PoE injectors with a total power of up to 120 W.
Web/SNMPv2c management, IPv4/IPv6 support. VLAN 802.1Q, QoS-shaper, Spannig tree, MAC/IP/port/URL filter.
Wall or DIN installation, metal design IP30. ESD port protection, external power supply DC 48~56V, operation at -10 to 60°C, without fans.
Gigabit managed 4-port router with PoE (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, Wi-Fi elements or VOIP phones. A total of 120 W of power is available.
The device is suitable for installation on a wall or directly into elevators, the construction is resistant to falls and vibrations, including IP30 protection.
BASIC SPECIFICATIONS
Physical properties:
Ports: 4 x RJ-45 10/100/1000BASE-T, 1x WAN 1000Base-T port, USB 3.0 (only for backup and restore of configuration file)
Design: DIN rail for wall mounting
Power supply: 48 - 56 V DC power supply, jack or PIN terminal, total power consumption up to 120 W (power supply not included)
Protection: ESD contact up to 6 kV
Operating temperature: -10°C to +60°C
Dimensions: 180 x 140 x 24.4 mm
Weight: 728g
Administration functions:
Management: Web, SNMP v1, v2c, SNTP
NTP Network Time Protocol
L3 IP routing: IPv6 support, RIPv1/2, dynamic IP (DHCP Client), static IP, PPPoE, L2TP, PPTP, DMZ, UPnP
QoS traffic prioritization: yes
VLAN support: IEEE 802.1Q
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
Authentication of connected devices: DOS protection, MAC/IP/Port/URL filtering
Wiring diagnostics: no
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4 x up to 36 W
Power supply type: End-span
Advanced features: powered device (PD) detection
detection of activity of powered devices (alive check)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to Conducted interference induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
