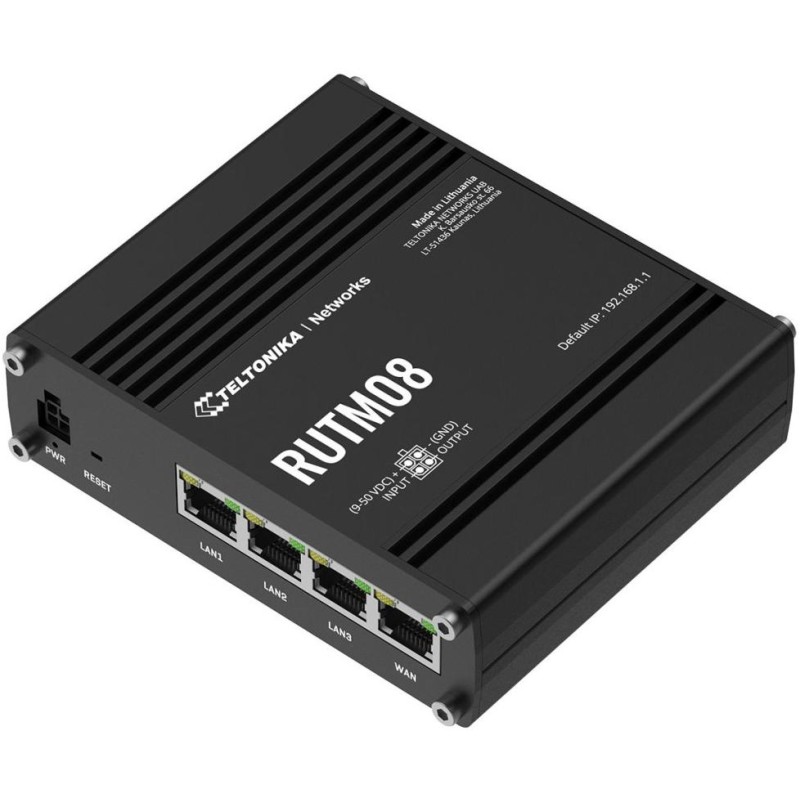

Teltonika RUTM08
Industrial router with advanced RutOS system , built-in Firewall, VPN and VLAN support . Thanks to its support for industrial network protocols, it is an ideal choice for professional applications .
It offers 4x 10/100/1000 Mbps RJ-45 (3x LAN, 1x WAN), 2x configurable digital I/O (input/output) and 1x USB 2.0 for easy compatibility with industrial machines, corporate or retail devices. DIN rail or wall mounting possible (brackets not included).
The package includes an 18W power adapter and an Ethernet cable (1.5 m).
Advantages:
- Remote access - Teltonika Remote Management System
- CPU Mediatek, MIPS1004Kc, 880 MHz
- Easy-to-use, secure RutOS operating system based on OpenWrt
- Support for VPN and VLAN services
- Preconfigured firewall
- 4× 10/100/1000 Mbps RJ-45, digital inputs/outputs and USB 2.0
- Wide input voltage range and passive PoE power option for easier integration
- Durable aluminum body, operating temperature from -40 to 75 °C, IP30 protection
Software:
- Operating system: RutOS (OpenWrt-based Linux operating system)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy based routing
- Firewall: Port forwarding, traffic rules, custom rules, pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, unlimited firewall configuration via CLI
- Attack prevention: DDOS prevention (SYN flood protection, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VPN and Tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity
- Services: DDNS, Wake On Lan (WOL), WEB filter, UPNP, network sharing (Samba), traffic logging
- Management: Multiple users, configuration profiles, diagnostics, logs, configuration backup
More detailed information can be found in the attached manual, in the documents tab or on the page wiki.teltonika-networks.com/view/RUTM08 .
BASIC SPECIFICATIONS
Processor: Mediatek, MIPS1004Kc, 880 MHz
Memory: 256MB DDR3 + 16MB NOR flash
Ports: 3× 10/100/1000 Mbps RJ-45 LAN, 1× 10/100/1000 Mbps RJ-45 WAN, 1× USB 2.0, 1× digital input, 1× digital output (on power connector)
PoE support: yes, passive
Power supply: DC 9-50 V (4pin industrial connector), consumption < 5.5 W
Weight: 353g
Dimensions: 115 × 95.2 × 32.2 mm
