Planet IVR-300FP Enterprise router/FW VPN/VLAN/QoS/HA/AP counter, 2xWAN(SD-WAN), 3xLAN,1xSFP,4xPoE, IP30,-40/75st,48-54VDC

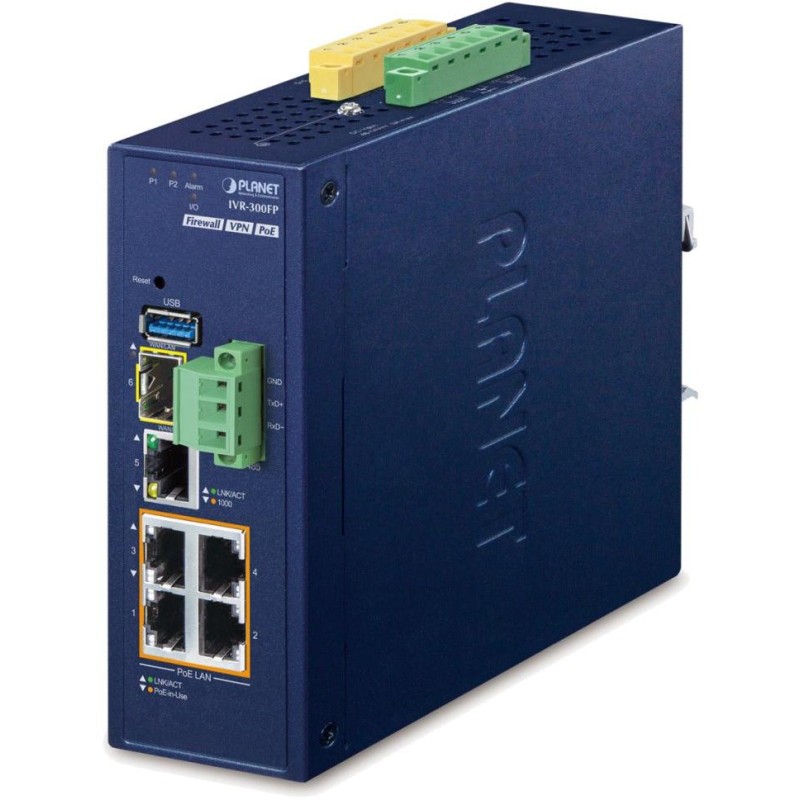

PLANET IVR-300FP Industrial gigabit PoE security VPN router with five RJ-45 ports (4× PoE 802.3af/at, max. 120 W), one SFP slot, firewall, dual WAN support, SD-WAN and easy setup via web interface. A device with a professional firewall enabling multiple Internet connections with the ability to distribute the load or create a backup for the connection. It is an ideal device for medium and small companies, providing them with the possibility of redundant connection, secure encrypted connection of a remote branch to the corporate VPN network and protection against attacks from the Internet. Wall or DIN installation, metal design IP30, DI/DO interface (2× input, 2× output), RS-485 (3-pole terminal block), DC 48-54 V power supply, operation at -40 to 75 °C, without fans (fanless). Key features: SD-WAN support Dual-WAN function USB 3.0 port for system configuration backup and firmware update 2× DI/DO and 1× serial port (RS-485) for Modbus applications SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful packet inspection (SPI) firewall and content filtering Cybersecurity, NAT ALG (application layer gateway), blocks SYN/ICMP Flooding DoS/DDOS attack blocking, port range forwarding AP controller - access interface (Captive Portal) including RADIUS - management of up to 16 AP Wi-Fi units without the need for a license High availability HA (High Availability) of two routers between each other Supported Planet NMS management system and CloudViewer application 1× 3-pin terminal block (RS-485) Supports the SFP-DDM (digital diagnostic monitor) function, which significantly helps to monitor SFP parameters in real time. IP routing functions - static and dynamic routing, OSPF VPN functions - IPSec/remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN) Outbound load balancing for Ethernet WAN networks Automatic switching between Ethernet WAN networks Grouping multiple devices into a cluster and their mass management or, for example, updating Software-defined WAN networks (SD-WAN) remove the limitations of the MPLS line from an external provider to the headquarters for cloud applications. However, using cloud applications in traditional networks that were not built for such type of traffic often means connection slowdowns, outages and an overall deterioration of the user experience. Not to mention the financial cost of such lines. SD-WAN automatically monitors data traffic in the network and directs it along the route that guarantees the highest possible quality. A great advantage of SD-WAN is also centralized management. This minimizes the risk of configuration errors, simplifies the detection and resolution of network problems and allows you to quickly implement the necessary changes to network and security policies. The advantage of SD-WAN is also security. It combines security integrated directly into the architecture with cloud security functions - it is a modern SASE approach. This does not limit the performance of the network or applications. Possible monitoring of mobile applications CloudViewer. BASIC SPECIFICATIONS Interfaces: Ports: 4× RJ-45 Gbit LAN, 1× RJ-45 Gbit LAN/WAN, 1× SFP Gbit LAN/WAN, 1× USB 3.0 (firmware upgrade + backup/restore configuration) Management and administration: Web management (management from any browser), System Log, support for SNMP v1/v2c/v3, PLANET Smart Discovery utility and NMS controller Prioritization of QoS traffic: yes IP routing and firewall: Firewall: SPI (Stateful Packet Inspection), blocking SYN/ICMP Flooding, NAT ALGs (Application Layer Gateway), etc. Traffic protection: DoS/DDOS protection, MAC/IP filtering Protocols and services: TCP/IP, UDP, ARP, IPv4, IPv6, QoS, DMZ, IGMP, UPnP, SNMP (v1/v2c/v3), Static IP/PPPoE/DHCP client for WAN, DHCP server/NTP client for LAN, kMAC address isolation, DDNS (PLANET DDNS, Easy DDNS, DynDNS and No-IP) VPN: Tunnels: PPTP, L2TP, GRE, IPSec/Remote Server (Net-to-Net, Host-to-Net), SSL Server/Client (Open VPN) Performance: 60 tunnels, throughput up to 108 Mbps Encryption: DES, 3DES, AES or AES-128/192/256-bit encryption Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 authentication algorithm Physical properties: Design: DIN rail or wall Power supply: DC 48-54 V power supply, total power consumption up to 127 W (power supply not included) Operating temperature: -40 to +75 °C Dimensions: 135 × 135 × 50 mm Weight: 765 g PoE function: Total power supply power: max. 120 W, IEEE 802.3at/af Power supply: 54 V DC, max. 35 W Number of injectors: 4× Power supply type: End-span Advanced features: PD Alive Check automatic detection of powered devices integrated scheduler for scheduled shutdown of powered end elements PoE usage monitoring Other downloads
